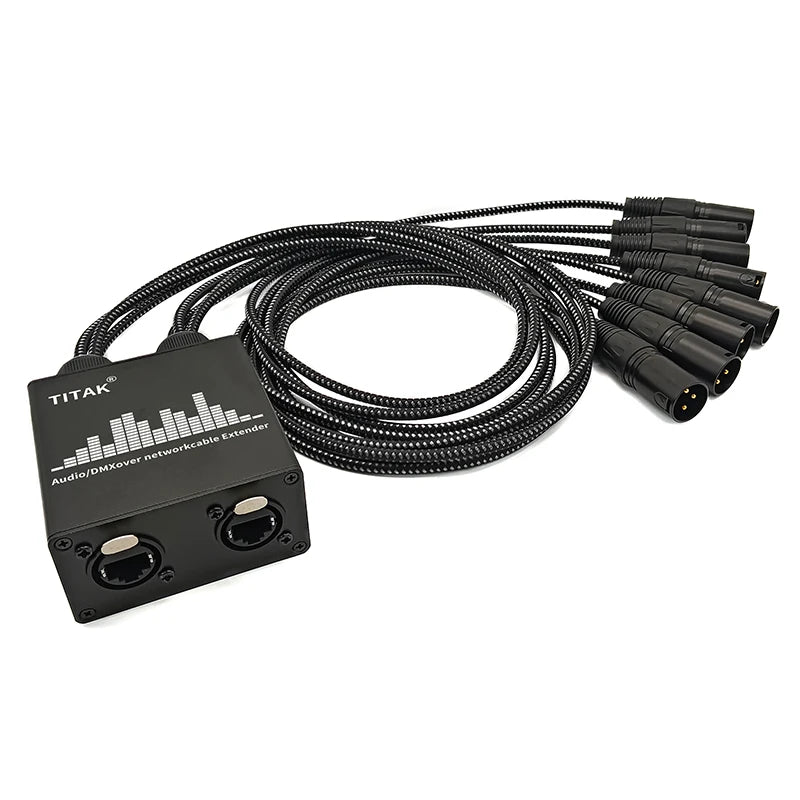

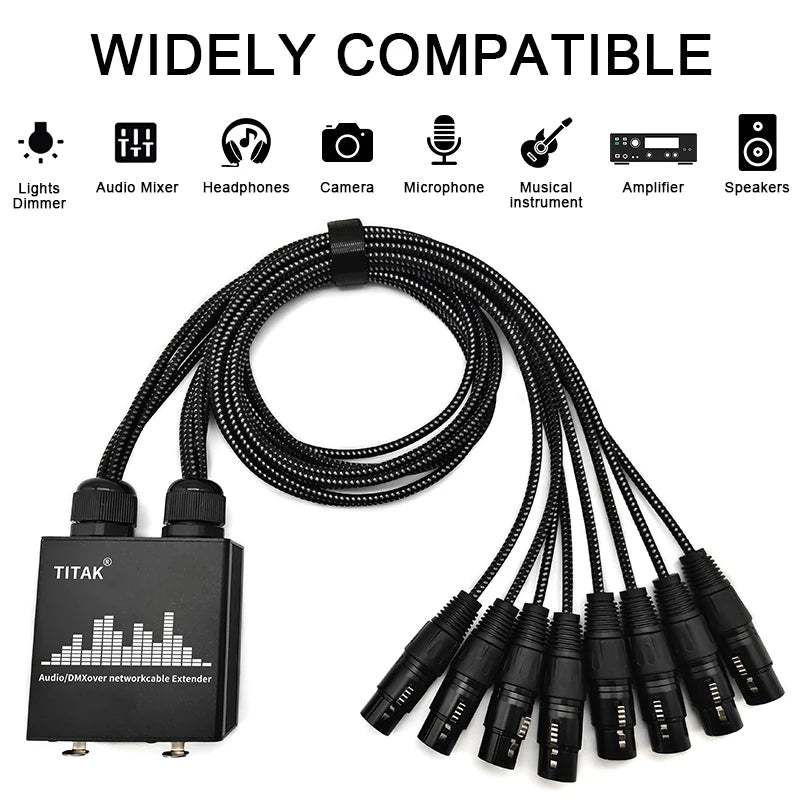

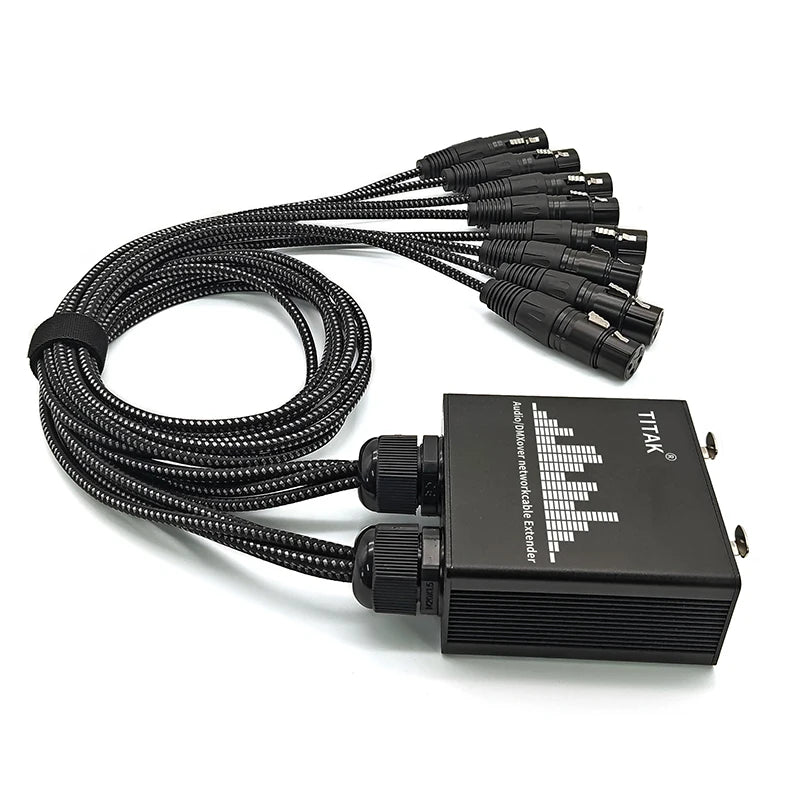

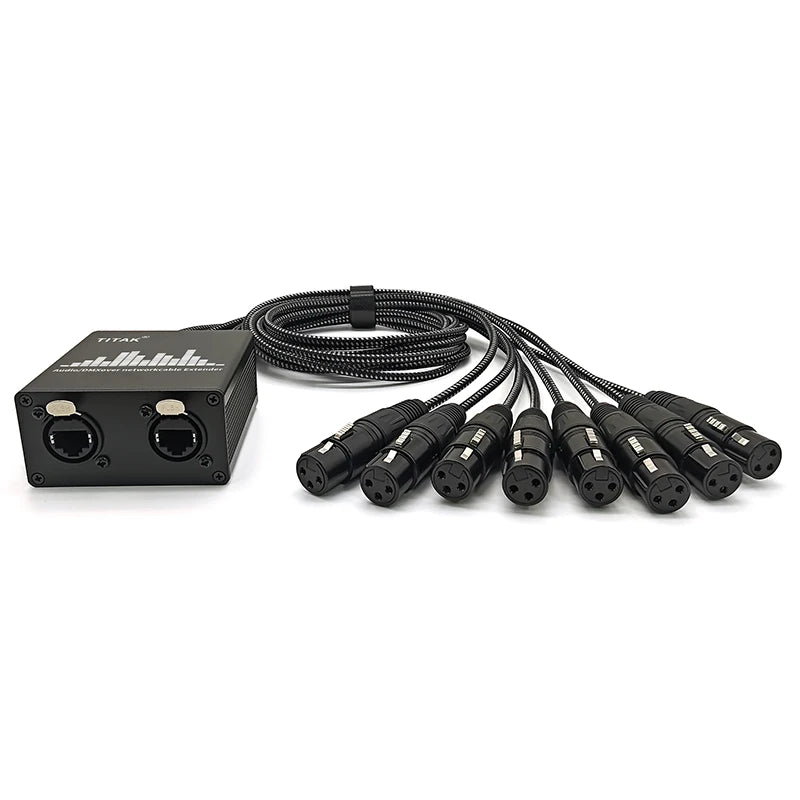

TITAK 8-Channel XLR to RJ45 Audio Snake Extender — Cat Cable Breakout

Run eight channels of audio (or DMX lighting control) down two ordinary network cables instead of hauling a heavy multicore snake. A breakout box at each end converts eight XLR connectors to two RJ45 ports, so you send everything over cheap, long, easily-replaced Cat cable — ideal for stage-to-mixer runs and permanent installs.

Highlights

• 8 channels over 2 network cables — replaces a heavy multicore snake
• Passive — no power needed at either end
• Carries balanced audio or DMX512 lighting control
• Uses standard, inexpensive Cat network cable (not included)
• Rugged metal breakout boxes with Neutrik-style locking connectors
• Needs a matching box at each end (this is one unit — buy a pair for a full run)

Specifications

• Brand: TITAK
• Type: 8-channel audio / DMX over-network-cable extender (breakout box)
• Channels: 8
• Box connectors: 2 × RJ45 (Ethercon-style)

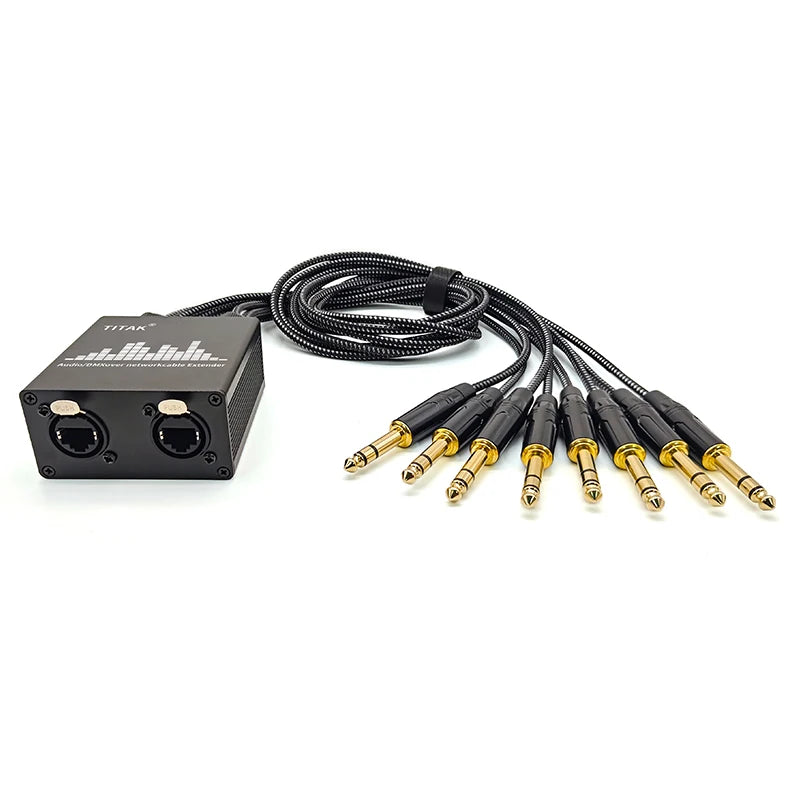

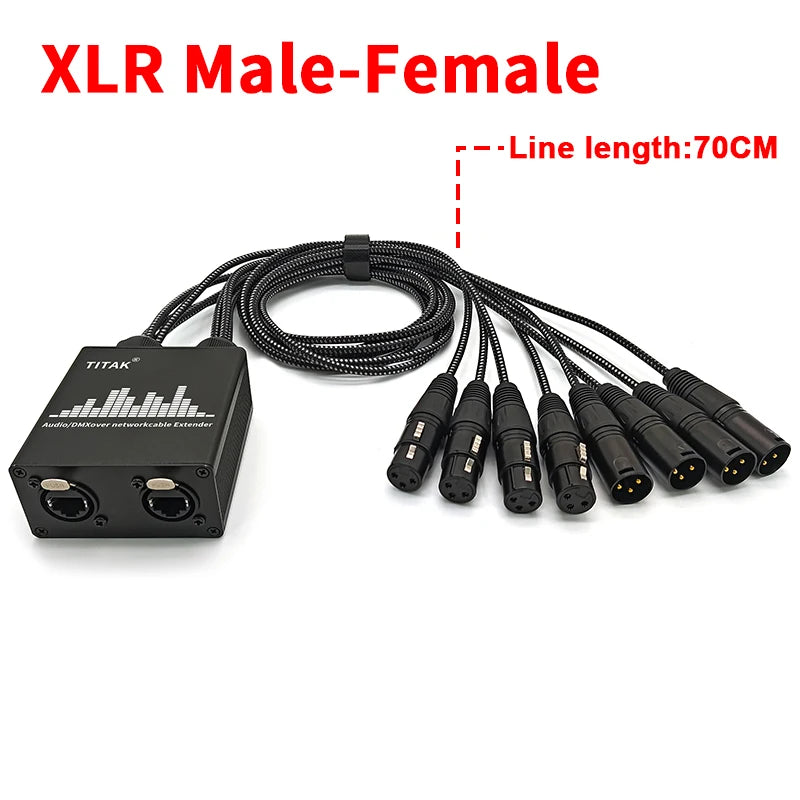

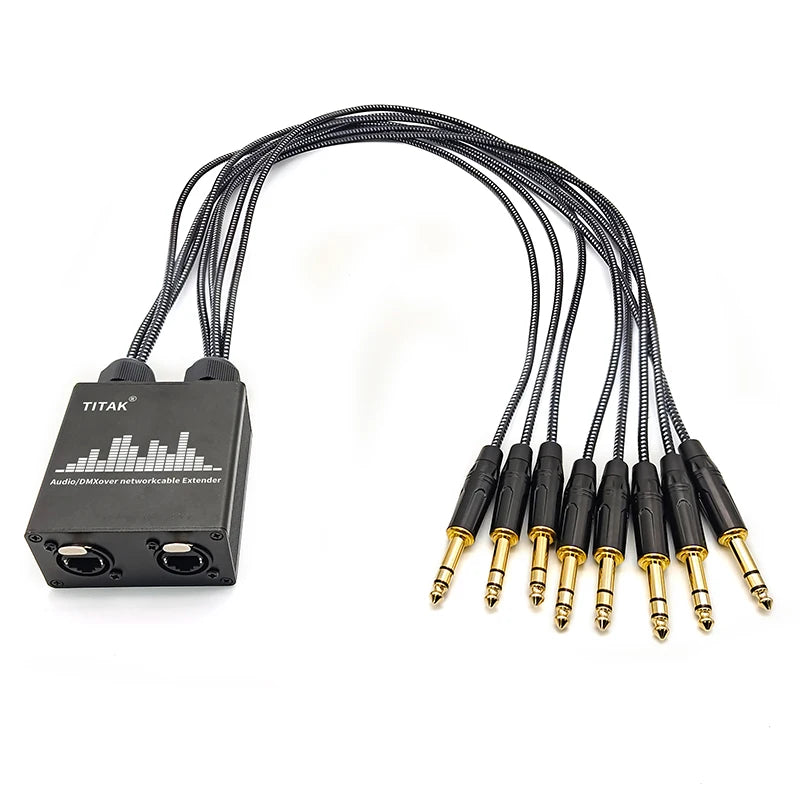

• Tail connectors: 8 × XLR male, XLR female, or 6.35mm TRS — select variant above
• Signal: Balanced analogue audio or DMX512
• Power: Passive (none required)
• Transport cable: Standard Cat5e/Cat6 network cable (not included)

Specifications taken from the manufacturer's product documentation and device markings. A complete run needs one box at each end; the network cable between them is not included.
