TEYUN Q-12 USB Audio Interface — 2 Inputs, 48V Phantom & Direct Monitor

A two-input USB interface that covers the basics properly. Both channels take a microphone or a line source on combo connectors, phantom power runs condenser mics, and a dedicated instrument button adds 10dB of gain with a high-impedance input so a guitar plugs straight in without sounding thin.

Highlights

• Two combo inputs — XLR microphone or 1/4" line on each channel
• 48V phantom power for both channels, for condenser mics

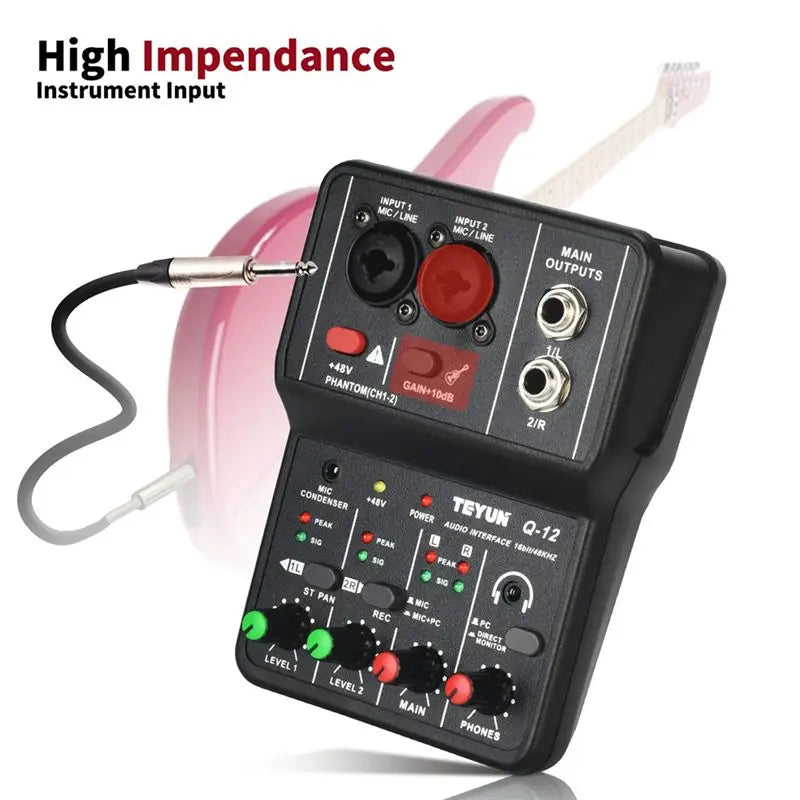

• High-impedance instrument input with +10dB gain button — plug a guitar in directly

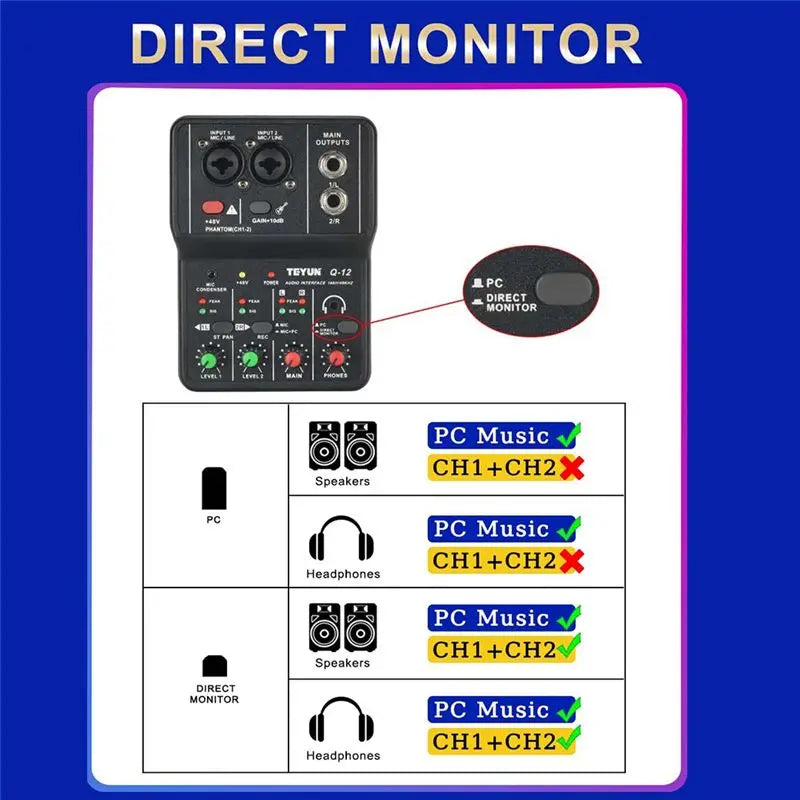

• Direct Monitor lets you hear yourself with zero latency while recording
• REC switch chooses mic only, or mic + computer audio — useful for streaming
• Stereo pan control and per-channel Peak/Signal metering

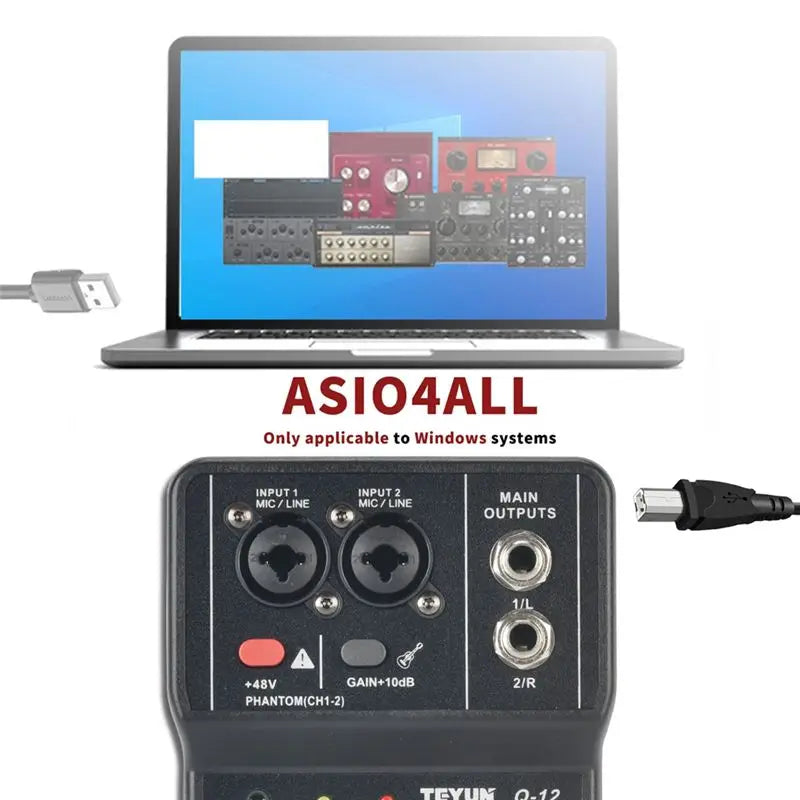

• Works with ASIO4ALL on Windows for low-latency use

Specifications

• Model: TEYUN Q-12
• Type: USB audio interface
• Resolution: 16-bit / 48kHz
• Inputs: 2 × combo XLR / 6.35mm (mic / line), high-impedance instrument mode
• Outputs: Main outputs 1/L and 2/R (6.35mm), headphone out
• Phantom power: +48V, channels 1–2
• Instrument gain: +10 dB switchable

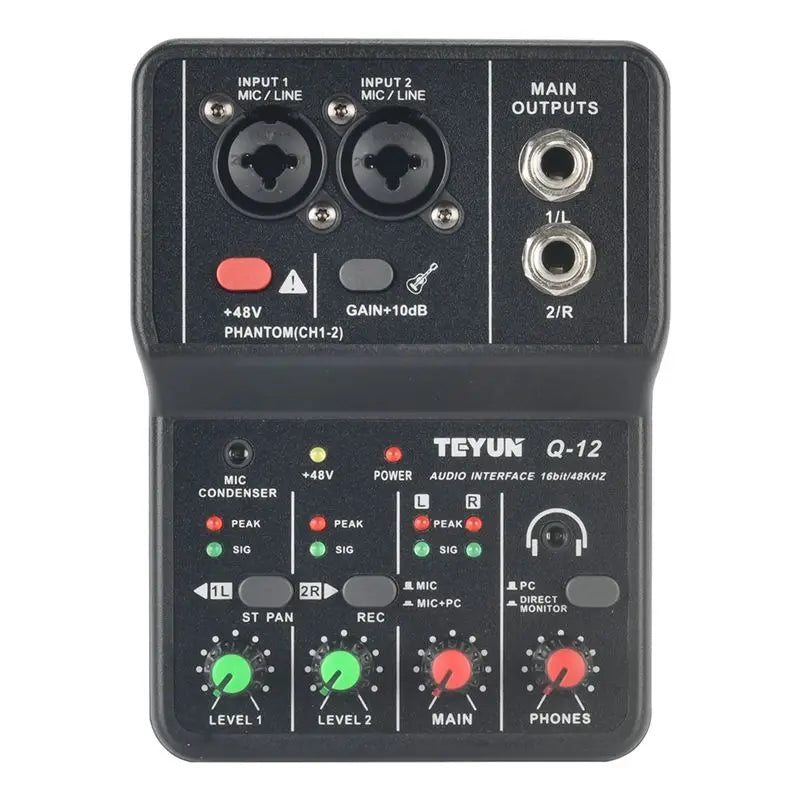

• Controls: Level 1, Level 2, Main, Phones
• Switches: Stereo pan (1L/2R), REC mode (Mic / Mic+PC), PC / Direct Monitor
• Metering: Peak and Signal LEDs per channel, condenser and 48V indicators
• Connection: USB (bus powered)

Specifications taken from the manufacturer's product documentation and device markings. ASIO4ALL driver support applies to Windows systems only.
