SONICAKE Buffer ABY Line Selector & AB Switch Pedal (QSS-23)

Run two amps, switch between two instruments, or split your signal — without repatching mid-set. A switchable buffer drives long cable runs when you need it, and turns the pedal into true bypass when you don't.

Highlights

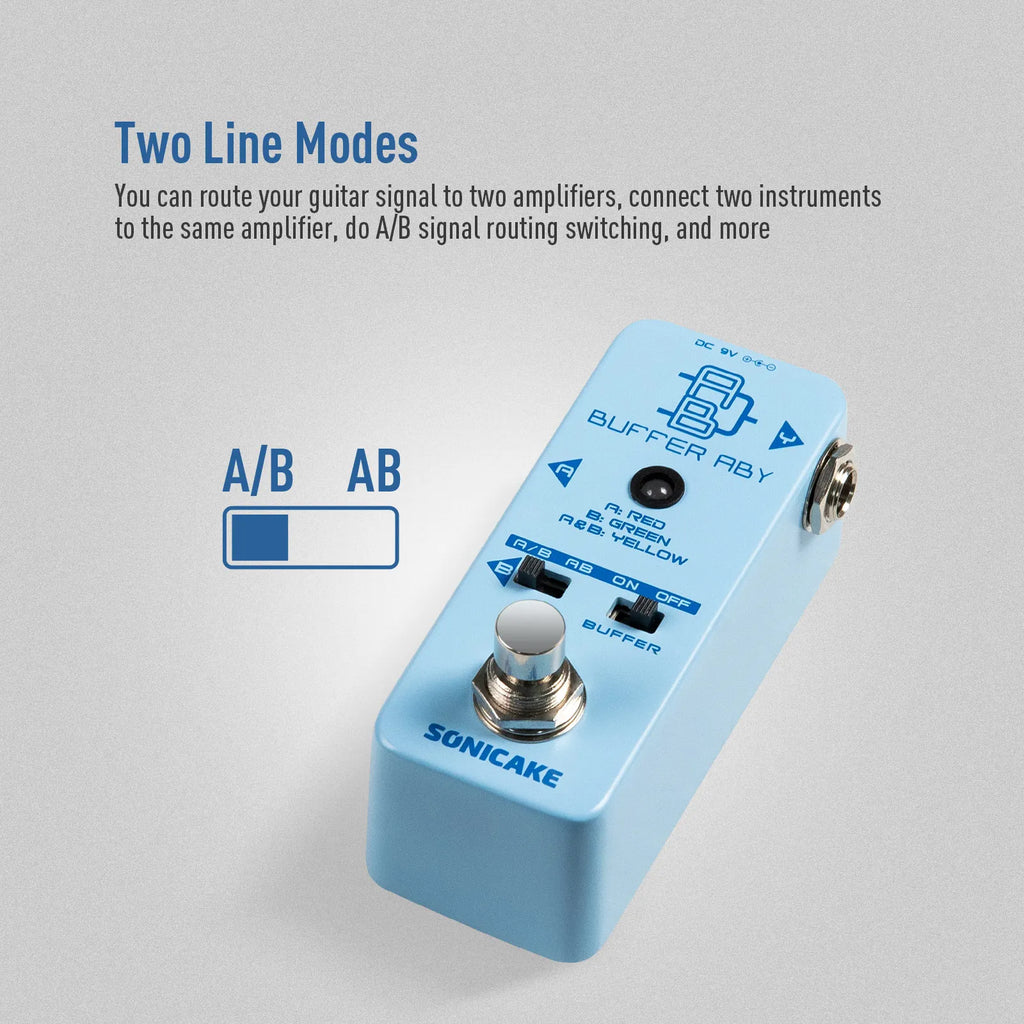

• A / B switching, or A+B together for running two amps at once

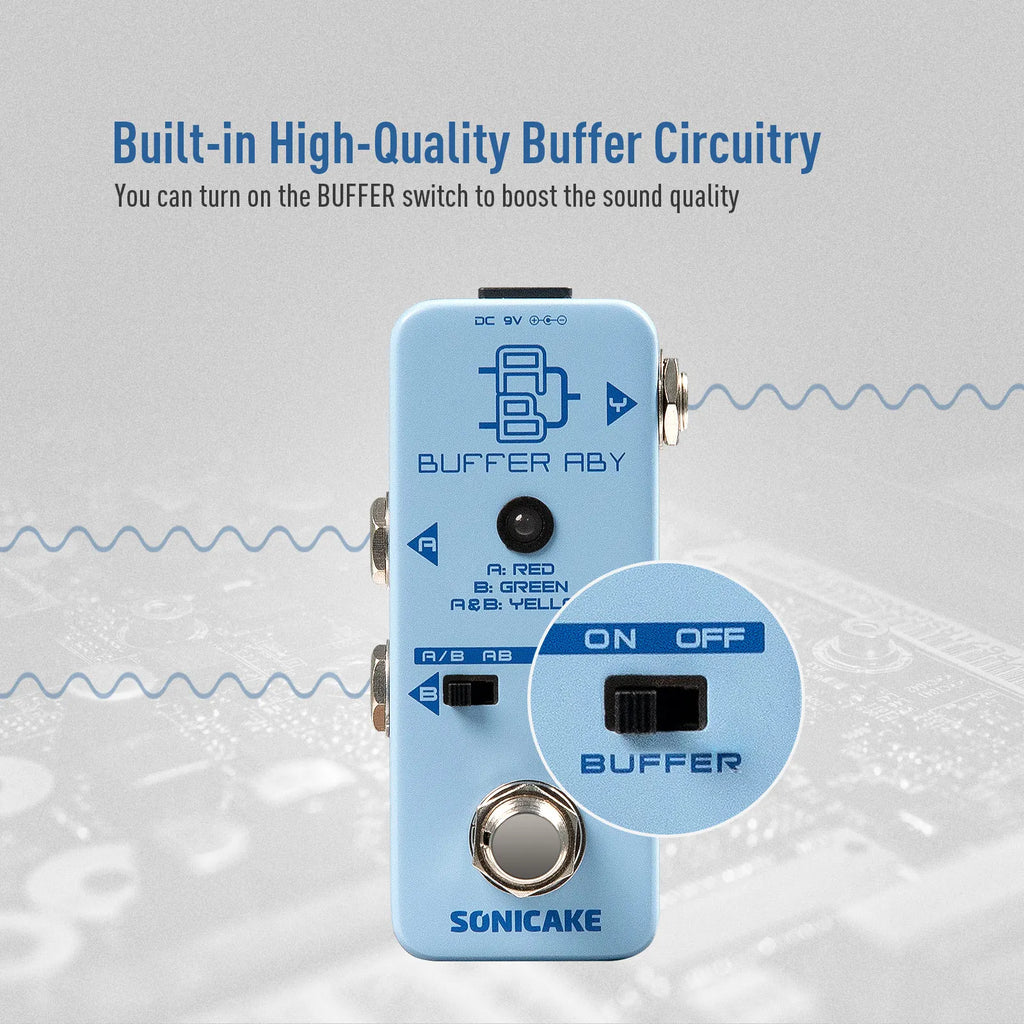

• Buffer ON drives long cable runs; buffer OFF gives true bypass
• Colour-coded LED tells you which output is live at a glance

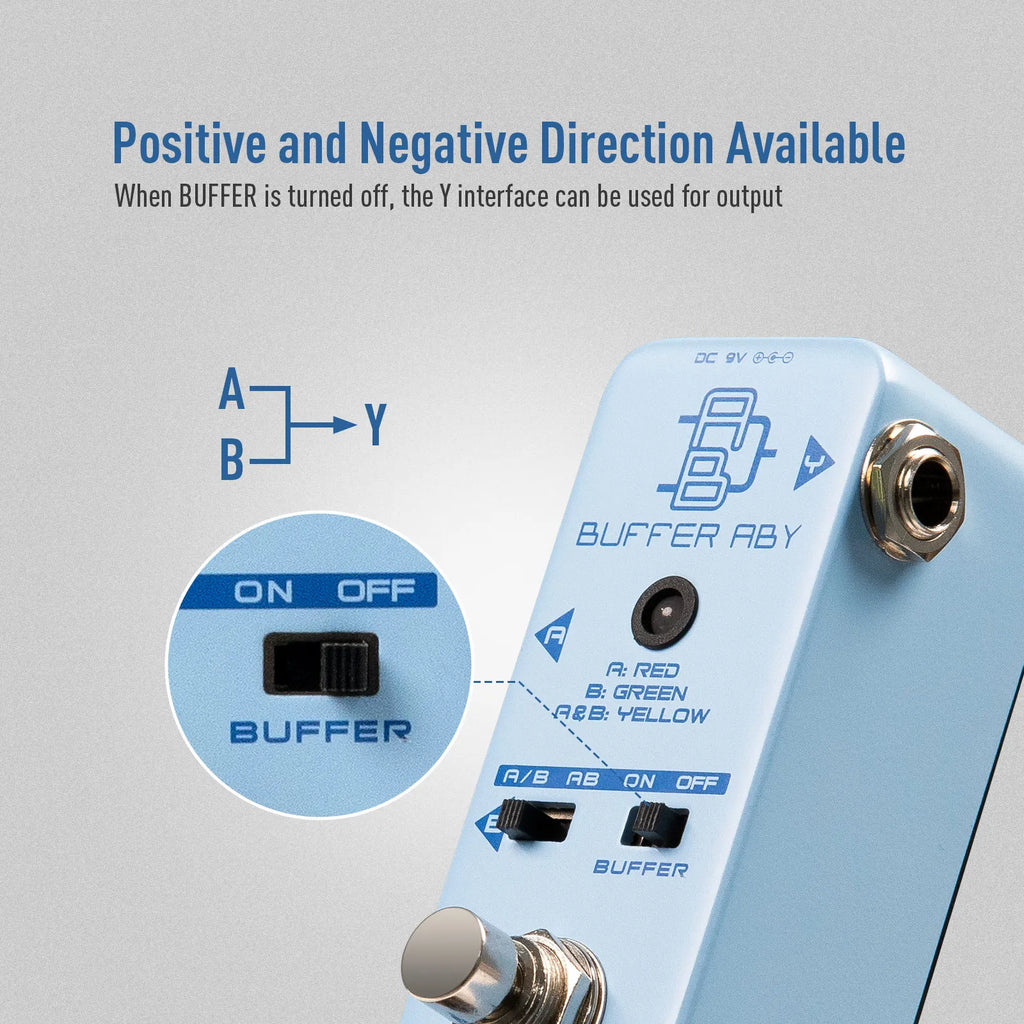

• Works in reverse — feed two instruments into one amp
• Mini enclosure, no board space wasted

Specifications

• Model: SONICAKE Buffer ABY QSS-23
• Type: ABY line selector / AB switcher with buffer
• Modes: A/B (either) or AB (both simultaneously)
• Bypass: True bypass with buffer off; buffered with buffer on

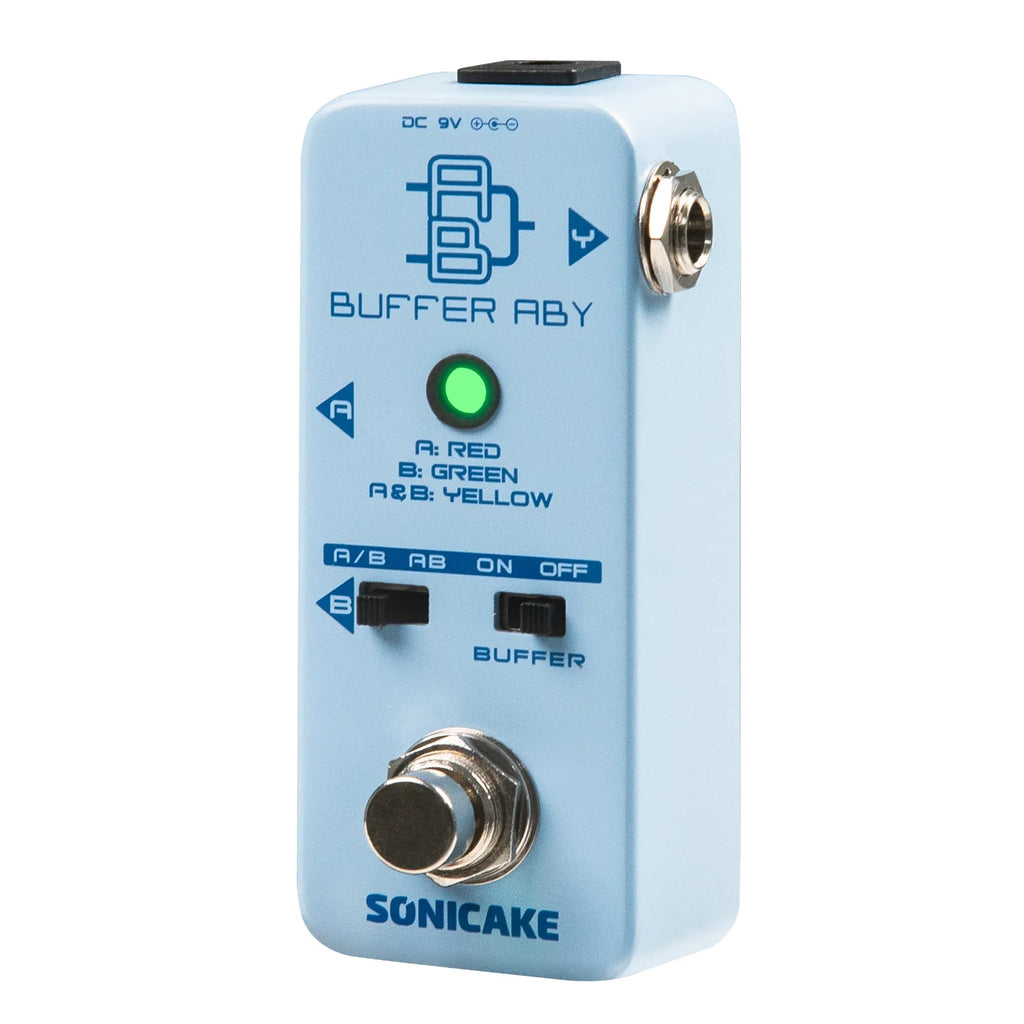

• LED indication: A = red, B = green, A&B = yellow
• Switches: A/B–AB mode selector, Buffer on/off

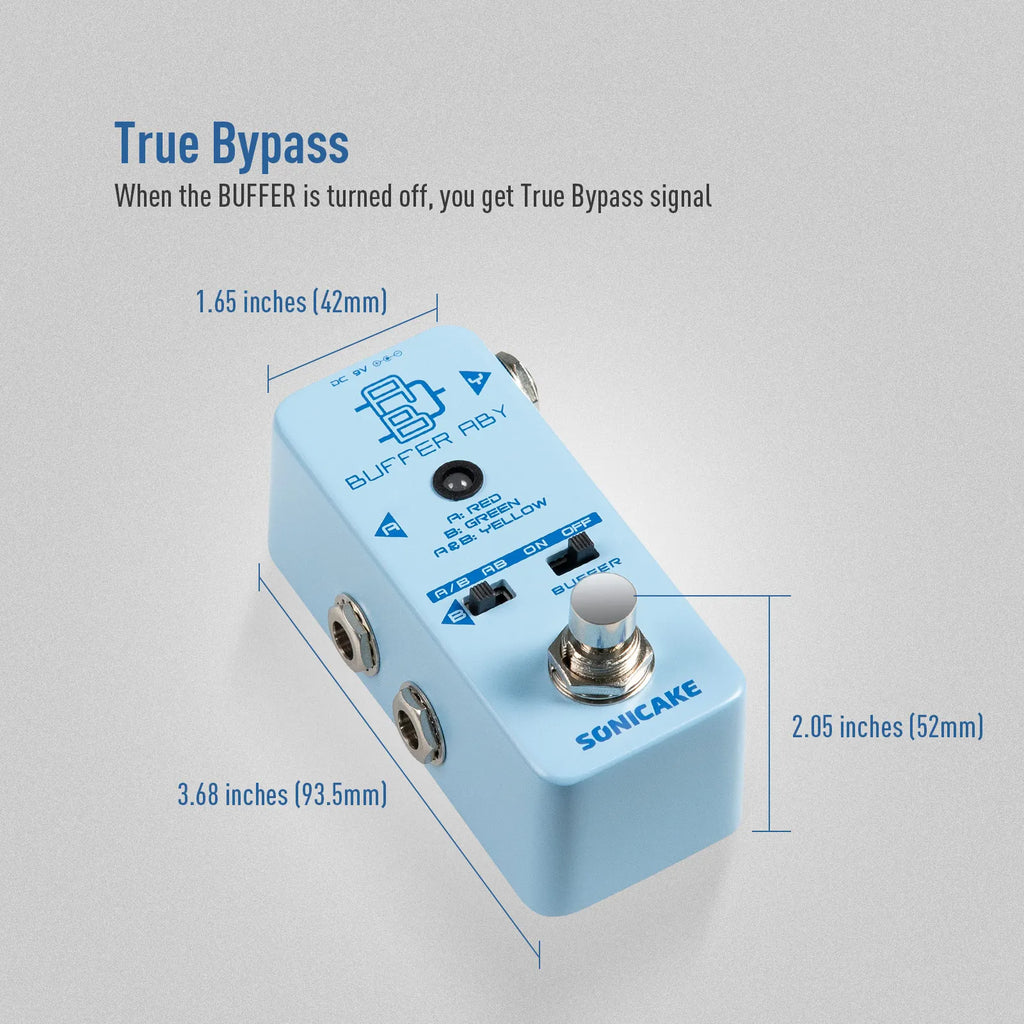

• Dimensions: 93.5 × 42 × 52 mm (3.68 × 1.65 × 2.05 in)
• Power: DC 9V, centre-negative (adapter not included)

Specifications taken from the manufacturer's product documentation.
