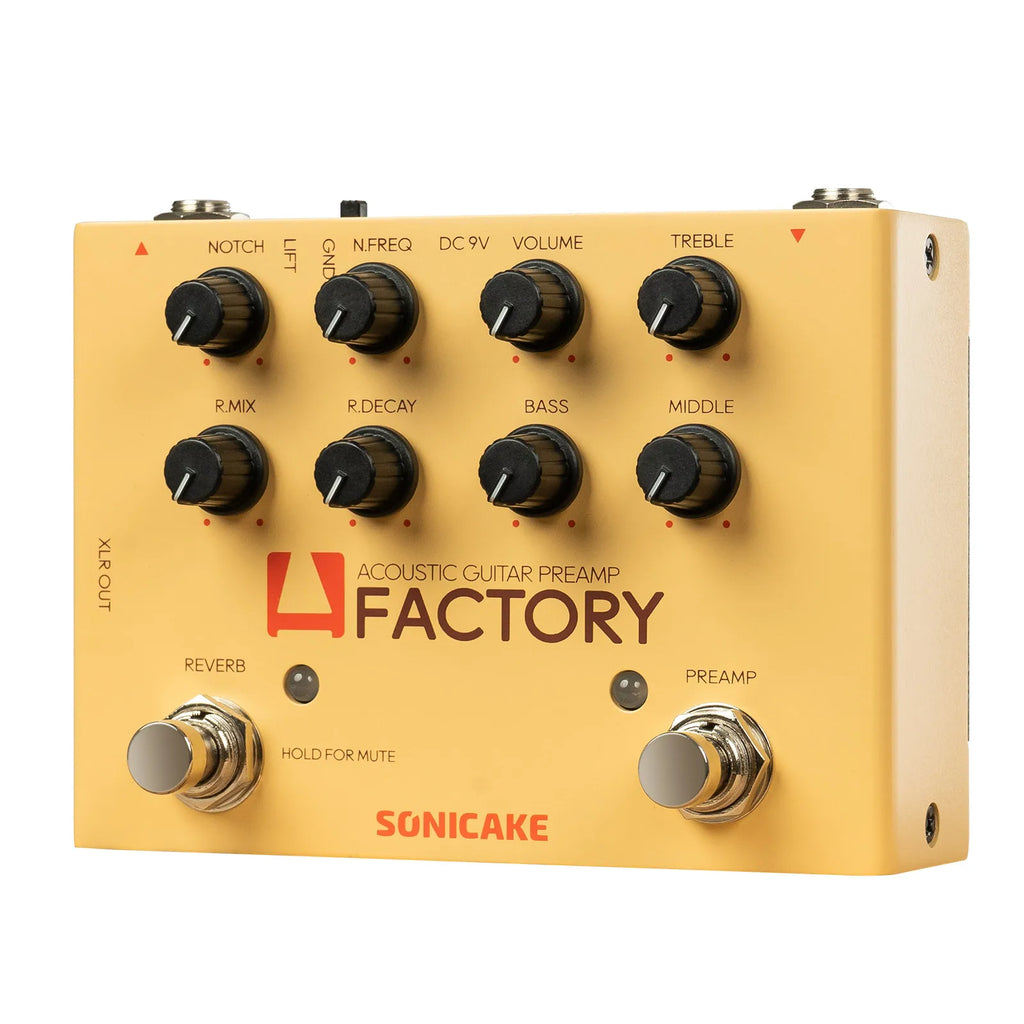

SONICAKE A-Factory Acoustic Guitar Preamp & DI with Reverb (QDS-04)

A complete acoustic front-end in one pedal. The A-Factory takes a piezo or magnetic pickup, shapes it with a three-band EQ, kills feedback with a sweepable notch filter, adds reverb for space, and sends a balanced XLR signal straight to the desk — so you can plug into any PA and sound like yourself.

Highlights

• High-impedance input voiced for acoustic pickups

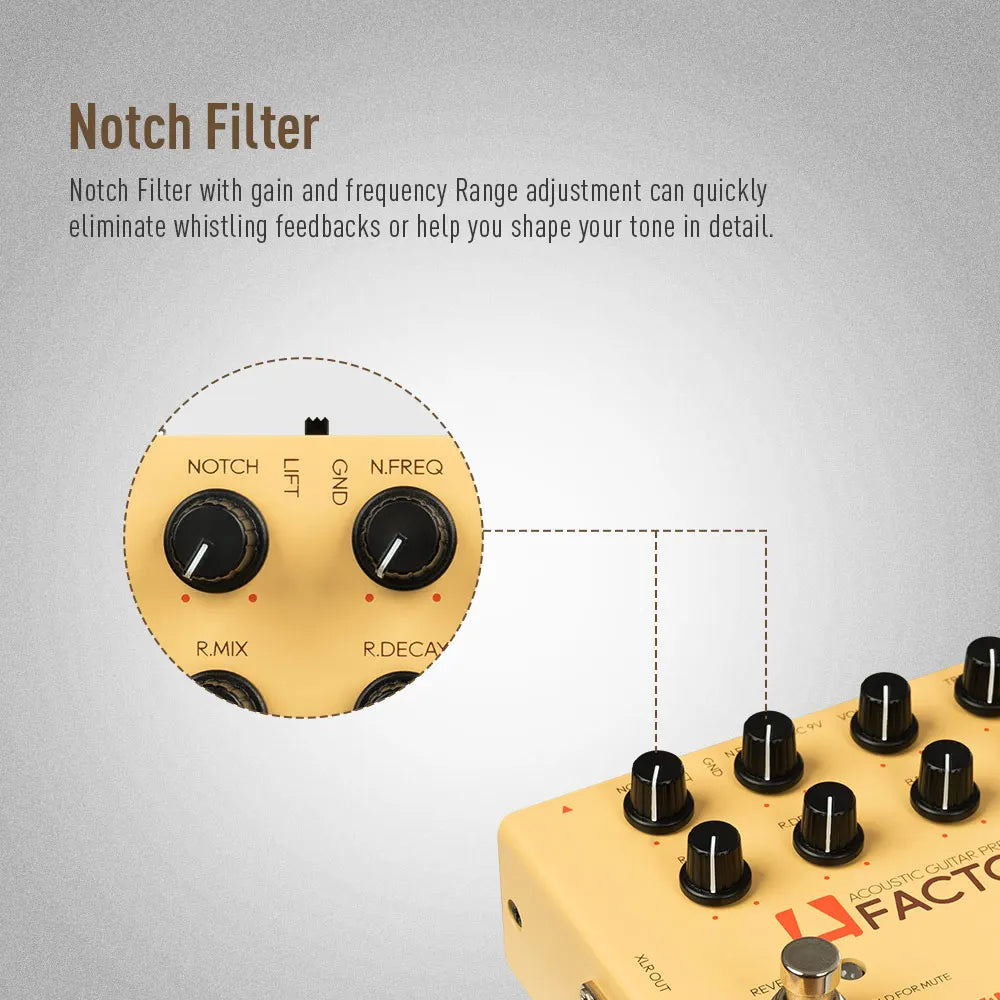

• Sweepable notch filter kills feedback howl without gutting your tone
• Three-band EQ (bass, middle, treble) plus volume
• Onboard reverb with mix and decay control
• Balanced XLR DI output with ground-lift switch

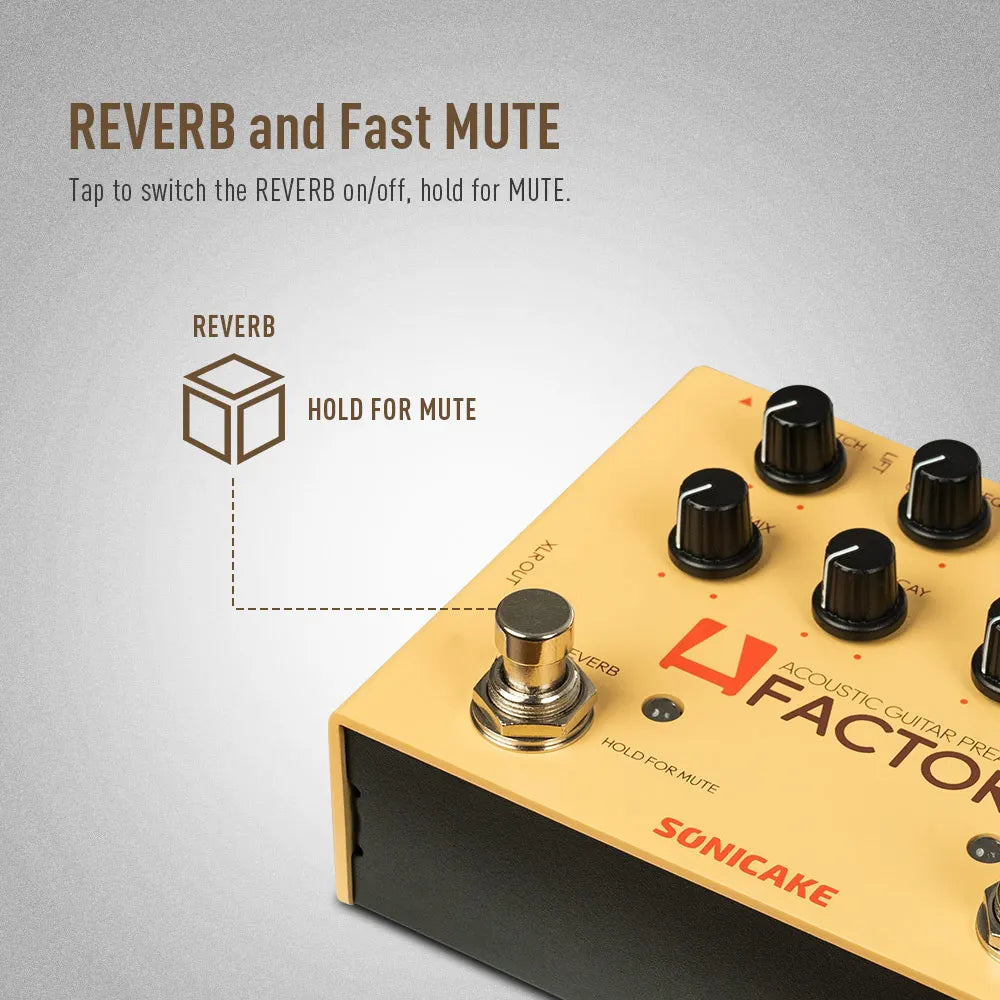

• Two footswitches — preamp on/off and reverb, hold reverb for instant mute

Specifications

• Model: SONICAKE A-Factory QDS-04
• Type: Acoustic instrument preamp / DI with reverb
• Input: High-impedance 6.35mm (1/4")
• Outputs: Balanced XLR DI + 6.35mm (1/4")
• Controls: Notch, N.Freq, Volume, Treble, Middle, Bass, R.Mix, R.Decay (8 knobs)
• Switch: Ground lift (LIFT / GND)
• Footswitches: 2 — Preamp, Reverb (hold for mute)

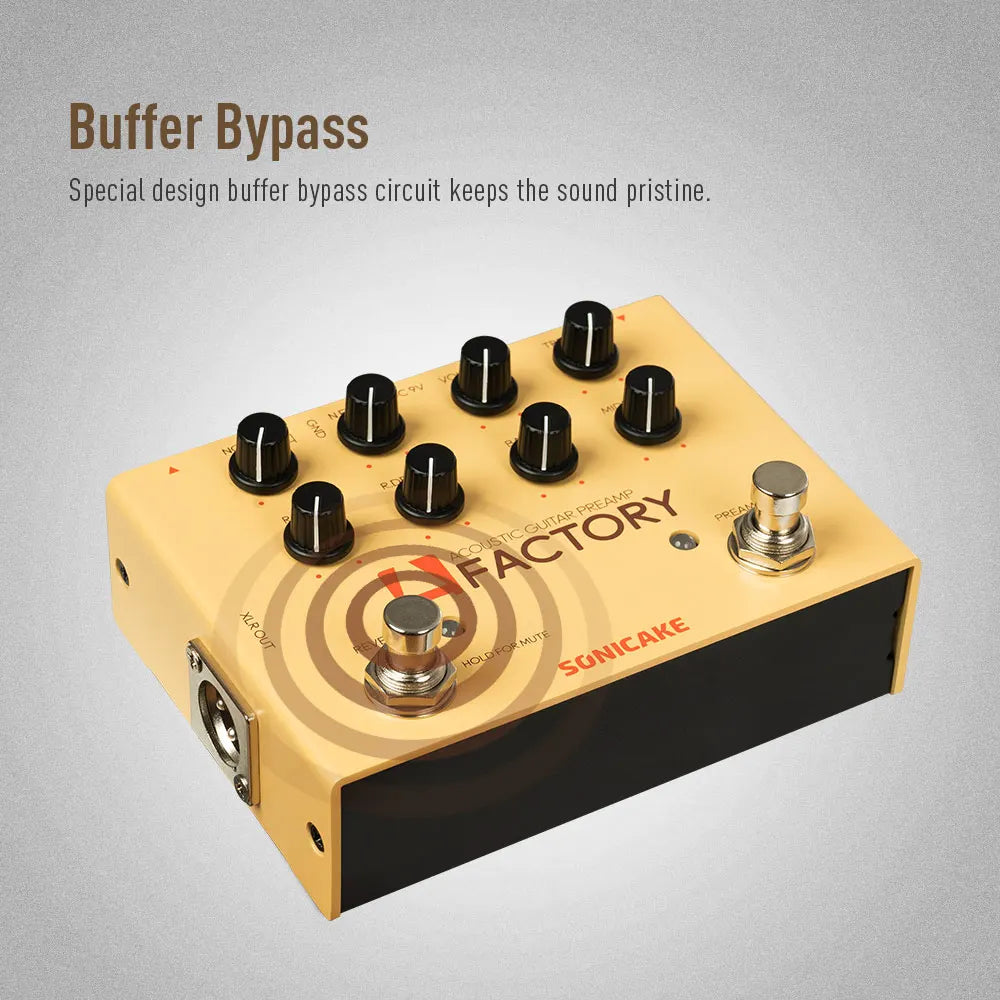

• Bypass: Buffered bypass

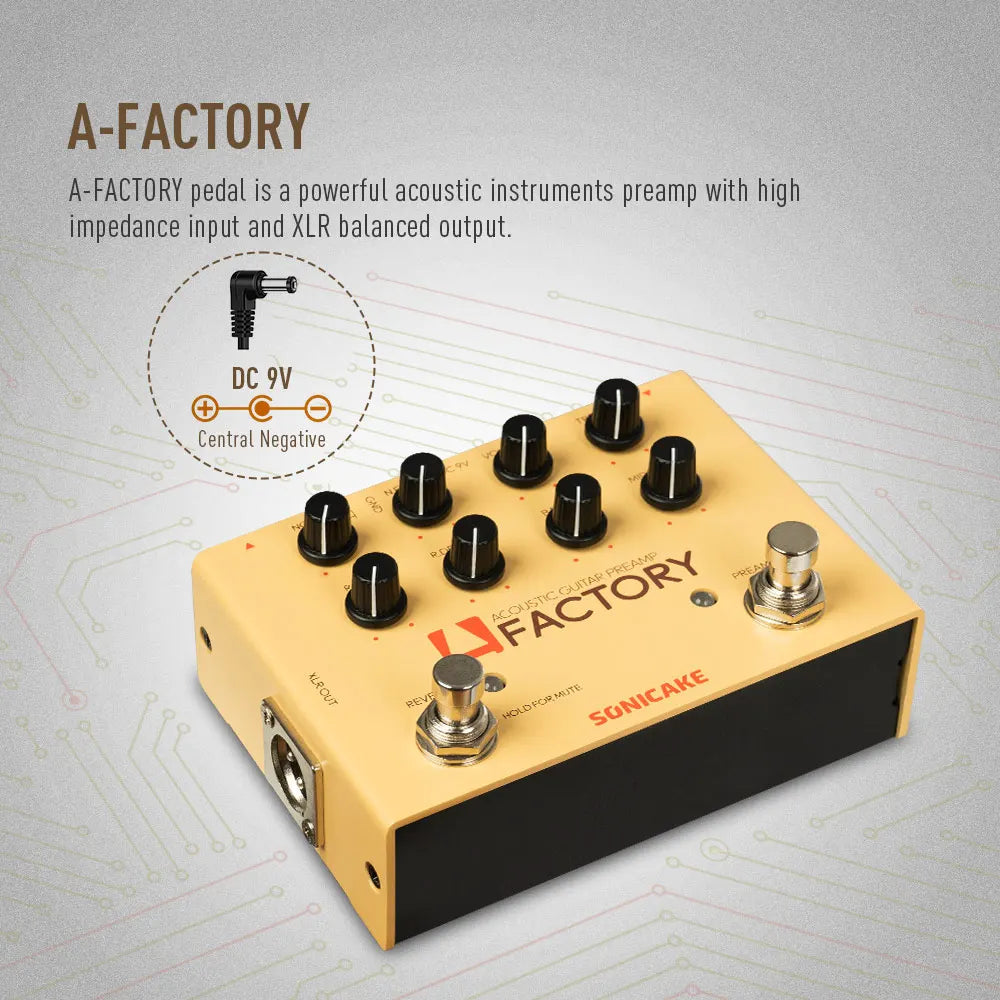

• Power: DC 9V, centre-negative (adapter not included)

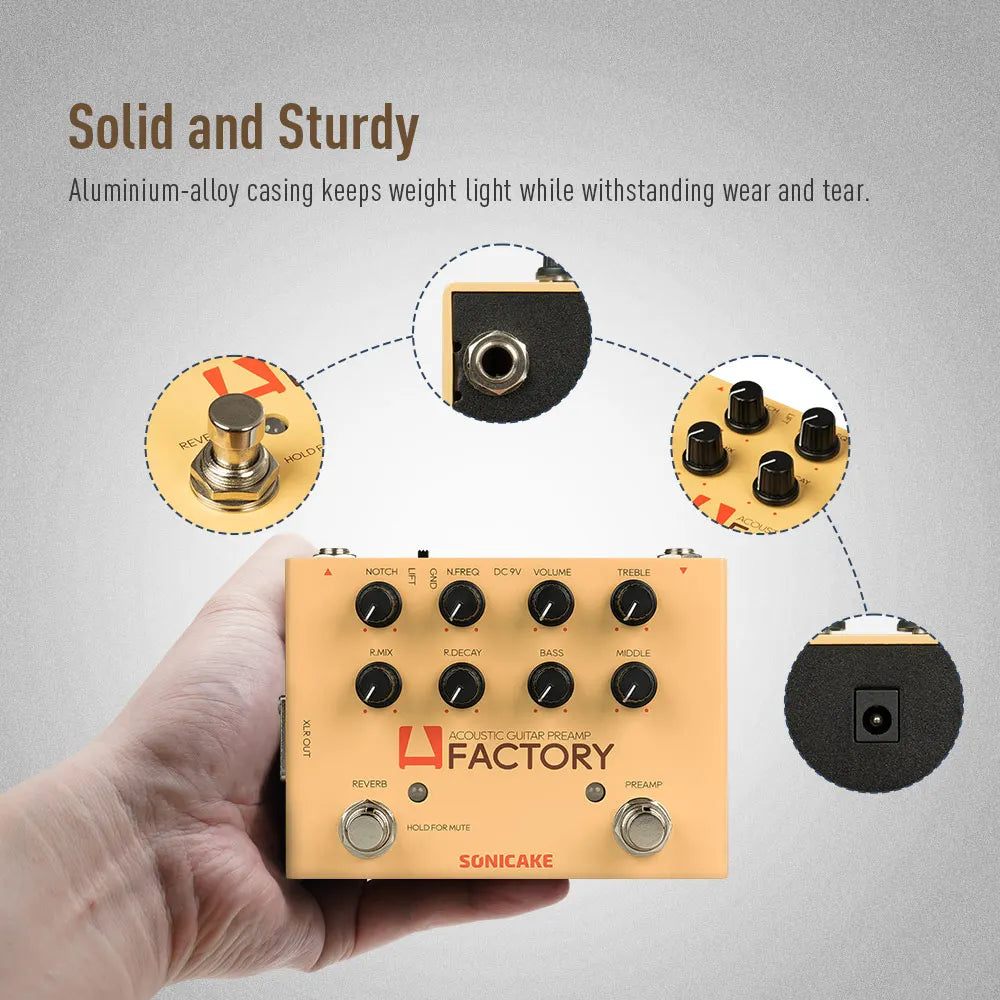

• Housing: Aluminium alloy

Specifications taken from the manufacturer's product documentation. Exact dimensions and current draw are not published for this model.
