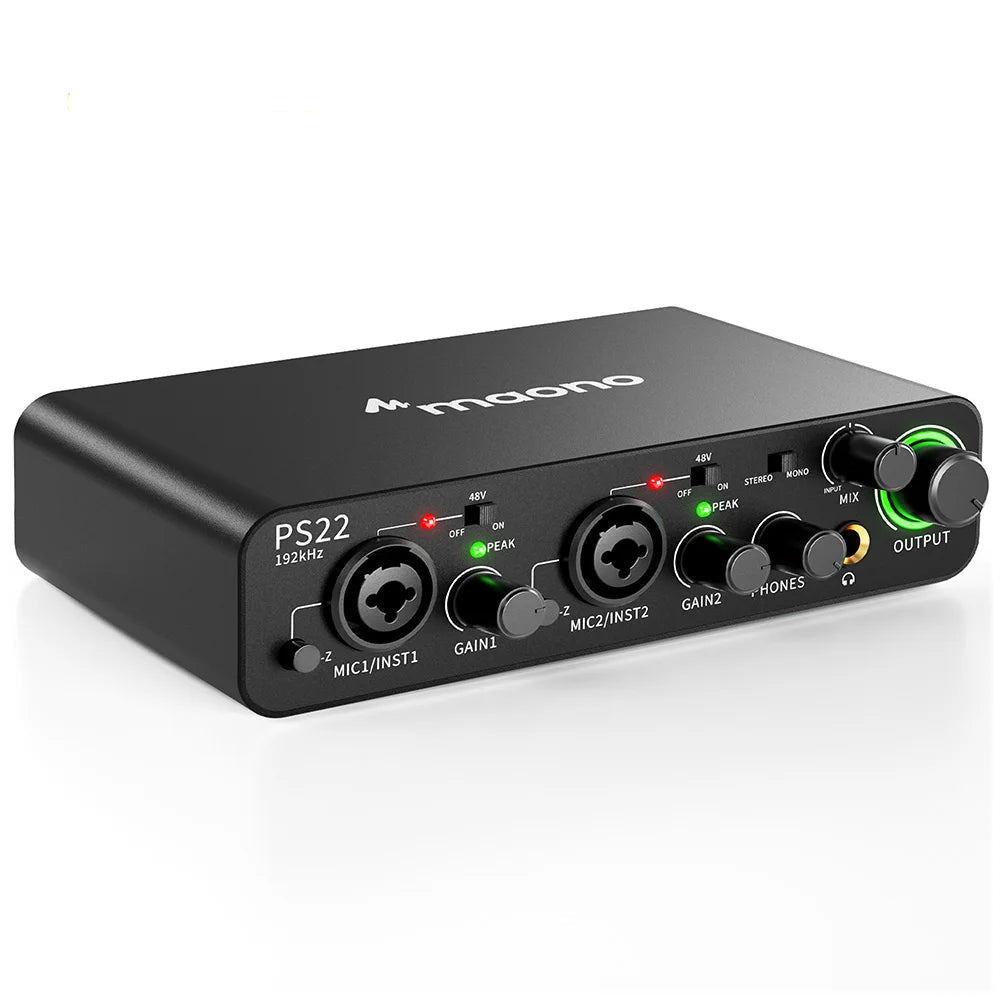

MAONO PS22 USB Audio Interface — 2-In/2-Out, 60dB Preamps, 24-bit/192kHz, Dual USB-C

The MAONO ProStudio PS22 is a two-channel USB audio interface for singers, guitarists, podcasters and streamers. Its preamps give up to 60dB of gain, enough for low-output dynamic mics as well as condensers. Two USB-C ports let you connect a computer and a phone, or two computers, at the same time, and the ProStudio software adds virtual channels and loopback for streaming.

Highlights

• Up to 60dB of preamp gain on each input
• 2 combo XLR/6.35mm inputs with Hi-Z switches for direct guitar or bass, so you can sing and play at once
• 48V phantom power switch for each channel
• 24-bit/192kHz conversion
• Monitor Mix knob blends input and playback, with a Stereo/Mono switch

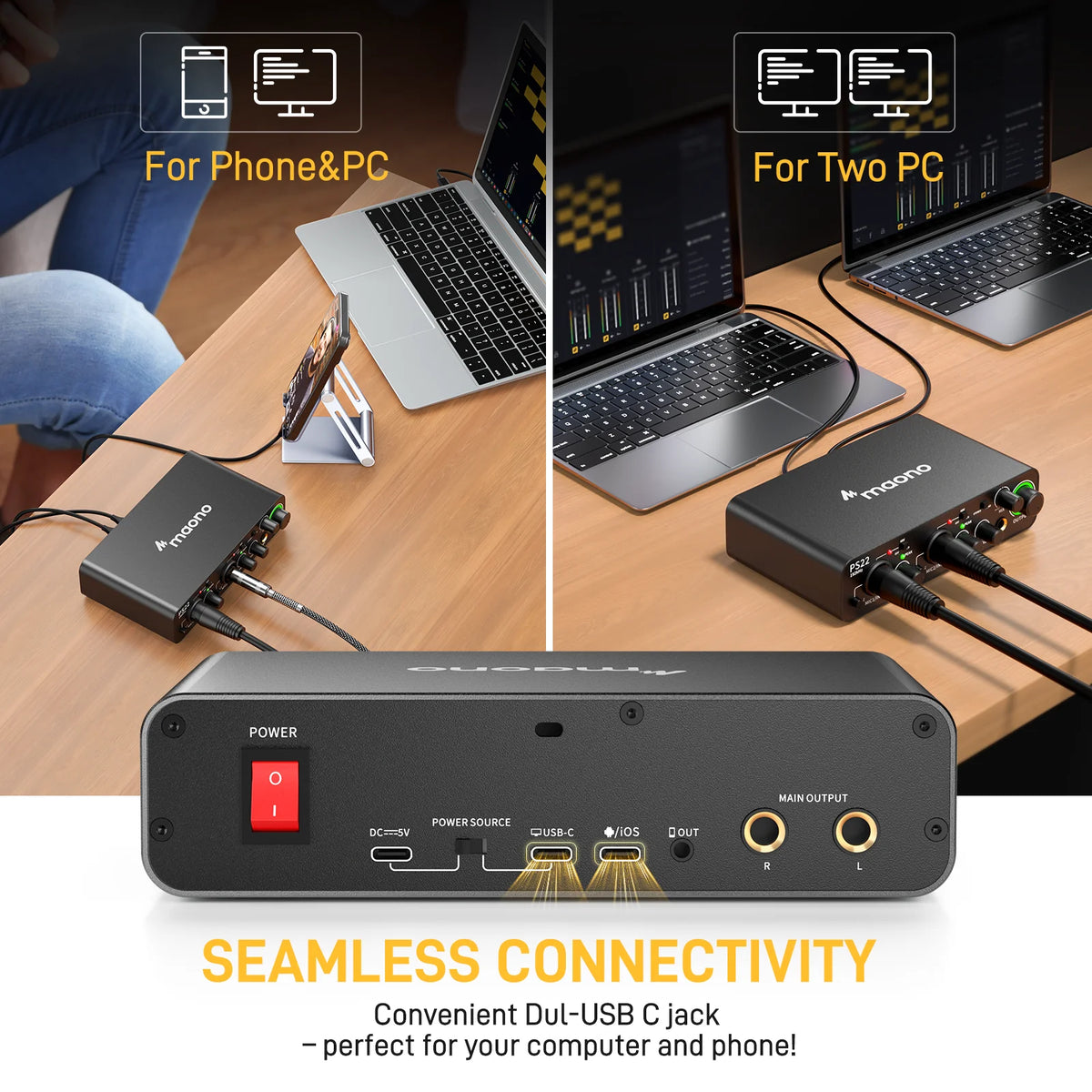

• Dual USB-C: PC + phone, or two PCs (handy for dual-PC streaming)

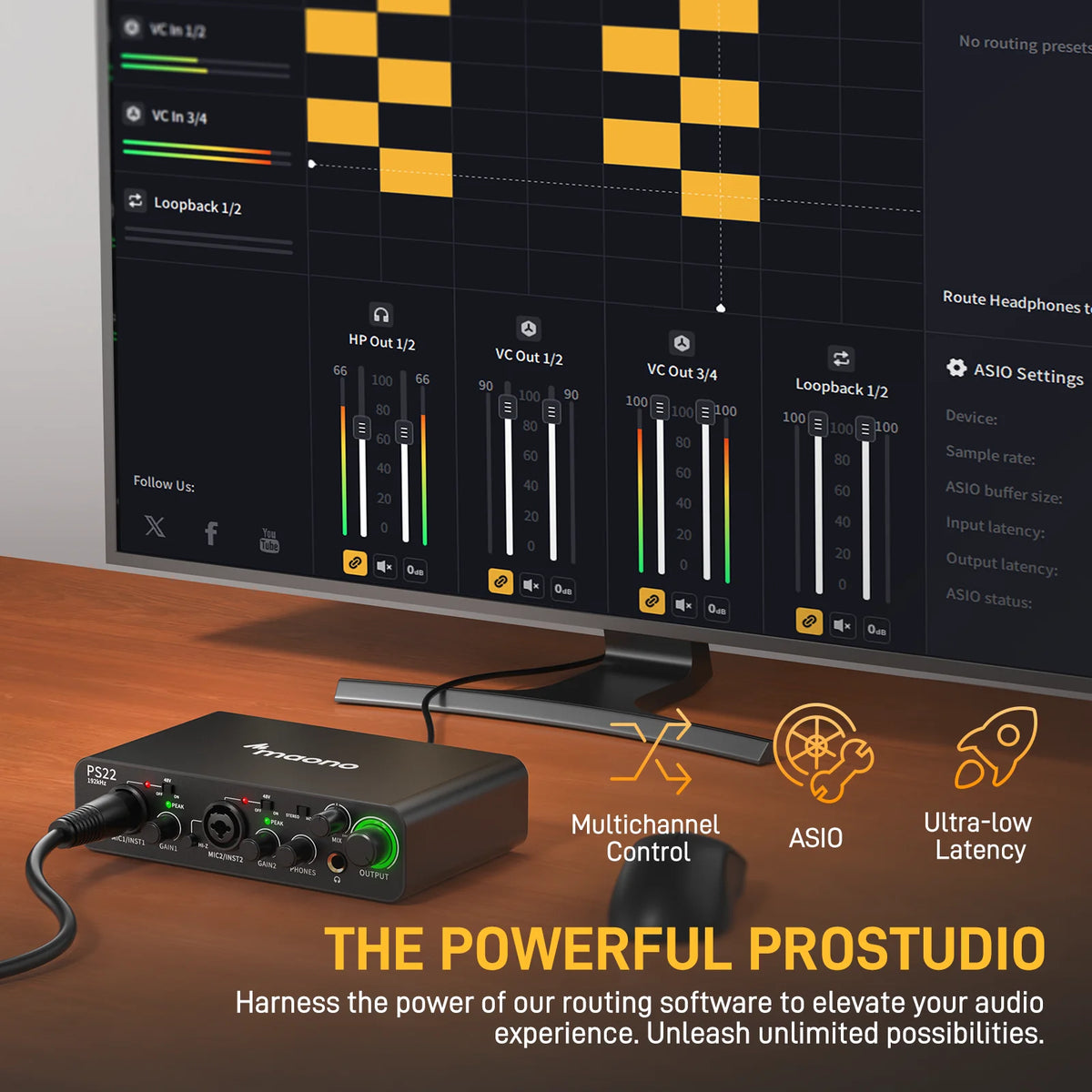

• ASIO driver + ProStudio routing software: 2 physical I/O plus up to 6 virtual channels, with loopback
• Rear power switch protects your gear from plug-in pops
• Two finishes: black and light grey

Specifications

• Model: MAONO ProStudio PS22
• Configuration: 2 inputs / 2 outputs (+6 virtual channels in software)
• Resolution: 24-bit / 192kHz
• Preamp gain: up to 60dB
• Inputs: 2 × combo XLR / 6.35mm (Mic / Inst, Hi-Z switch)
• Phantom power: +48V, per-channel switches
• Outputs: 2 × 6.35mm main outputs (L/R), 6.35mm headphone output

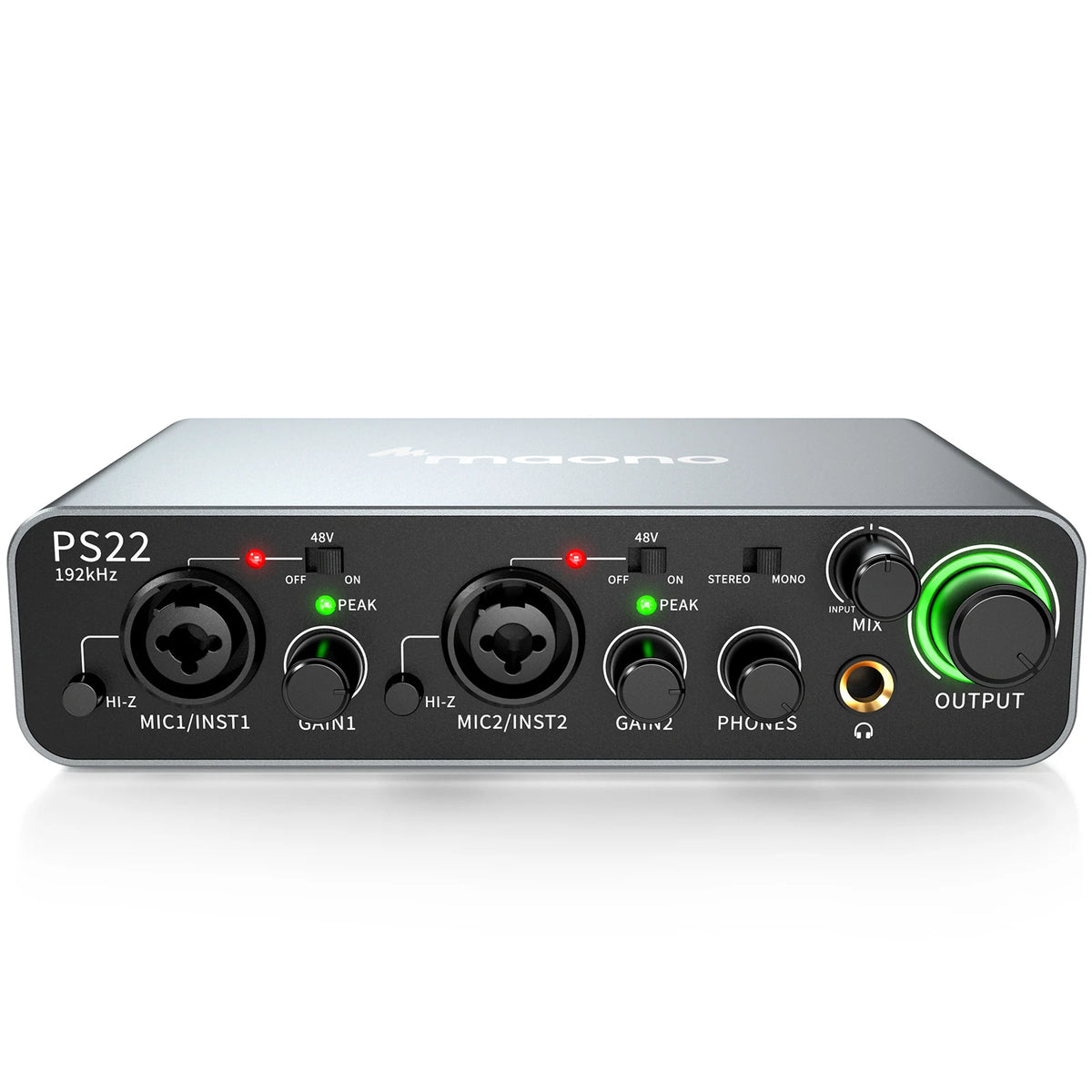

• Front controls: Gain 1, Gain 2, Phones level, Mix, Output level, Stereo/Mono
• Connections: 2 × USB-C data, USB-C DC 5V power input, power switch
• Driver: ASIO + MAONO ProStudio (download required on Windows)
• Works with: Pro Tools, Ableton Live, Cubase and other DAWs
• In the box: PS22 interface, USB-C to USB-C cable, USB-A to USB-C cable, 6.35mm to 3.5mm headphone adapter, user manual

Dynamic range, input impedance, dimensions and weight are not published in the listing.
