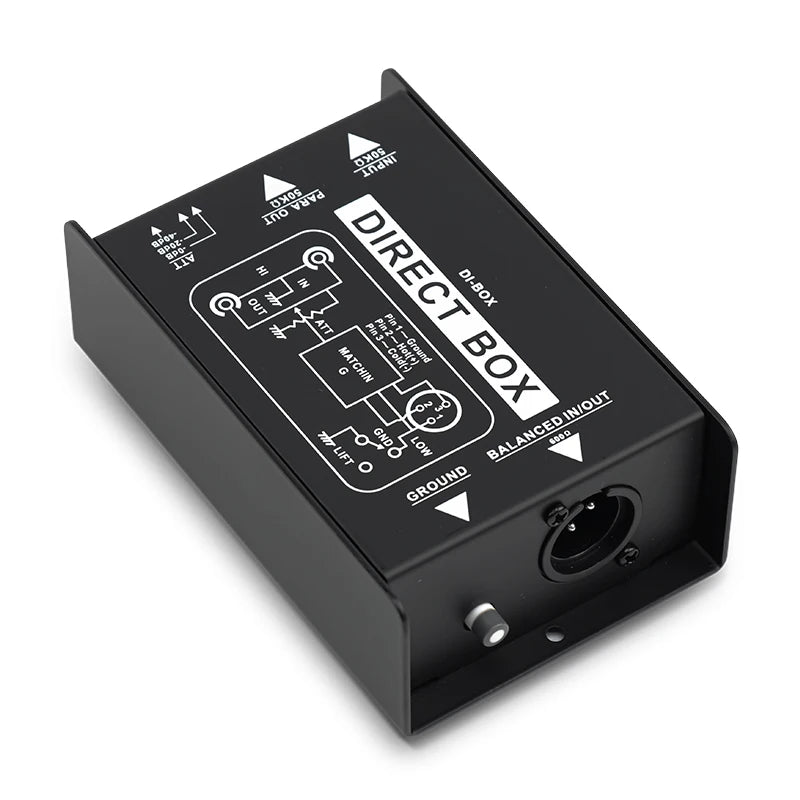

KDES Passive DI Box — 6.35mm to XLR, Ground Lift & 3-Way Pad

A passive direct box that converts a high-impedance instrument or line signal to a balanced, low-impedance XLR output for a mixer or stage box — no power needed. A three-way attenuation switch handles everything from a guitar up to a speaker-level feed, a ground-lift switch removes hum, and a parallel out lets you feed your amp at the same time.

Highlights

• Passive — no power or battery required

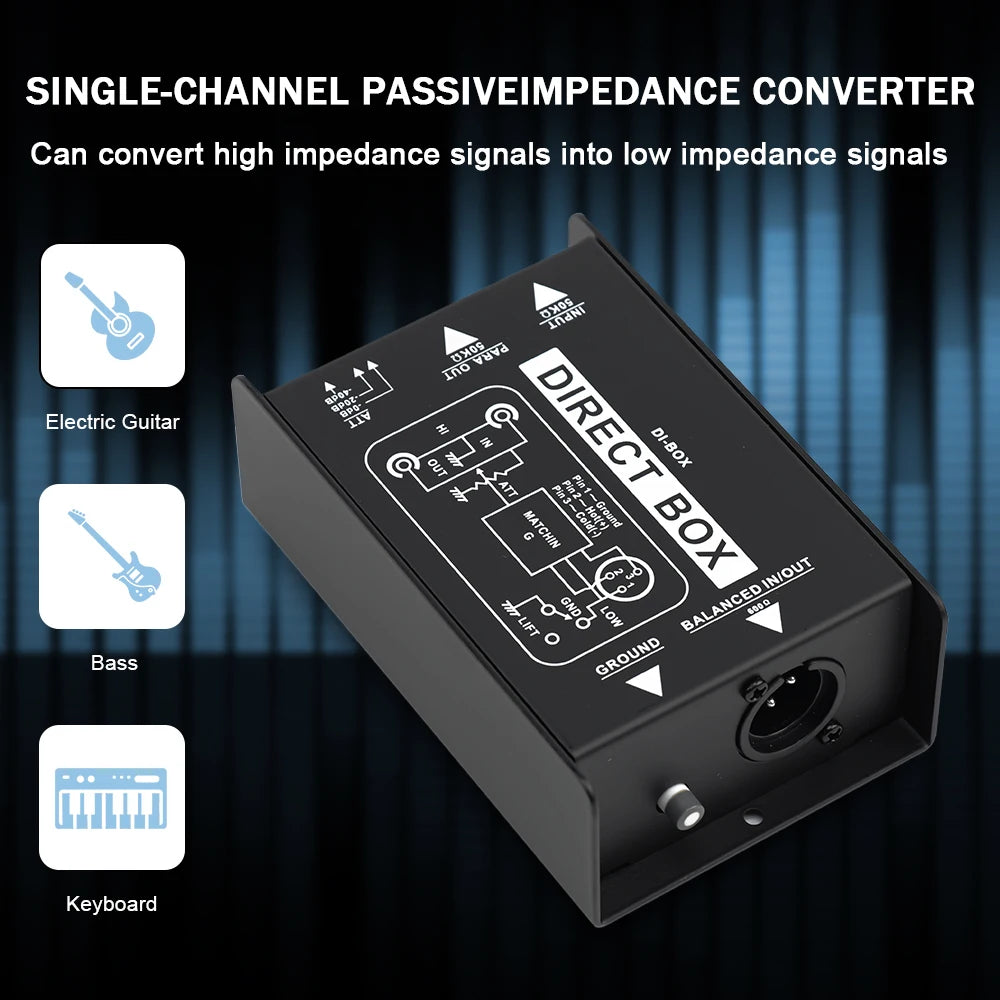

• Converts high-impedance signals to a balanced XLR output

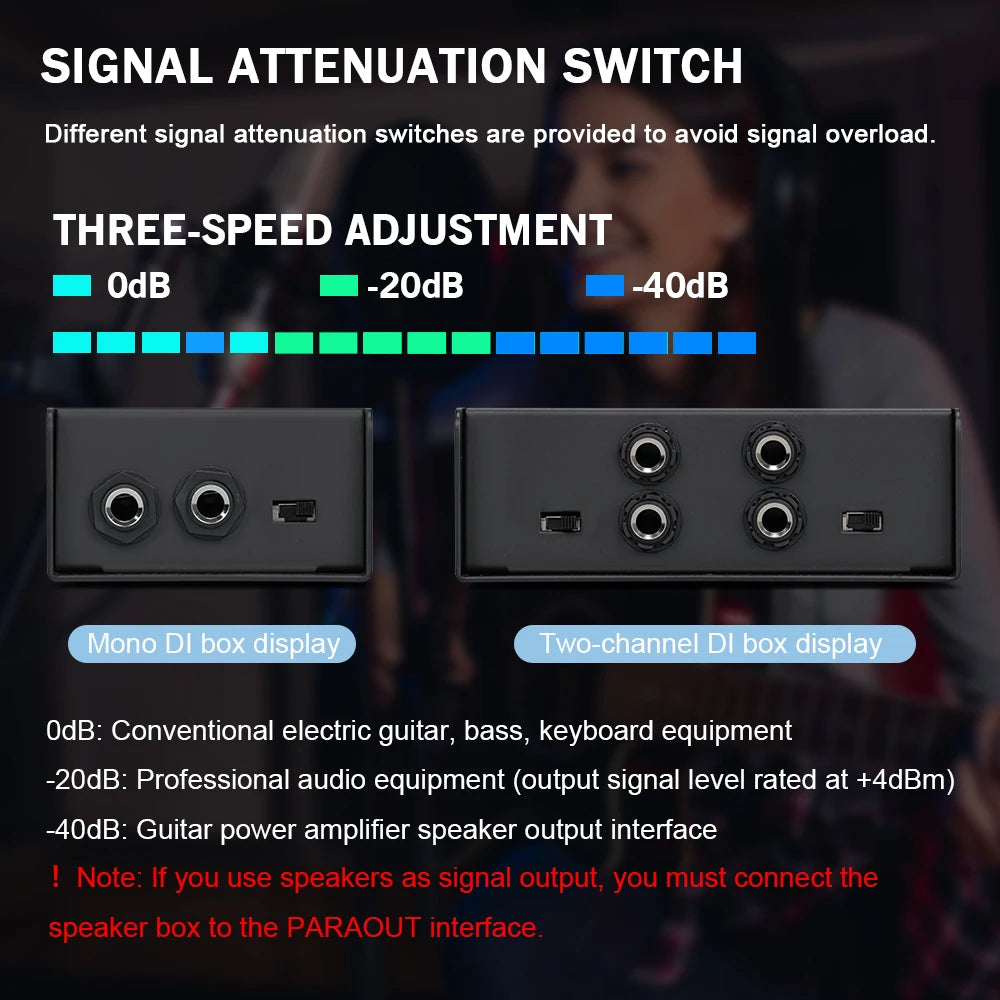

• 3-way pad: 0dB (instrument), -20dB (line/pro), -40dB (speaker)
• Ground lift switch to kill hum

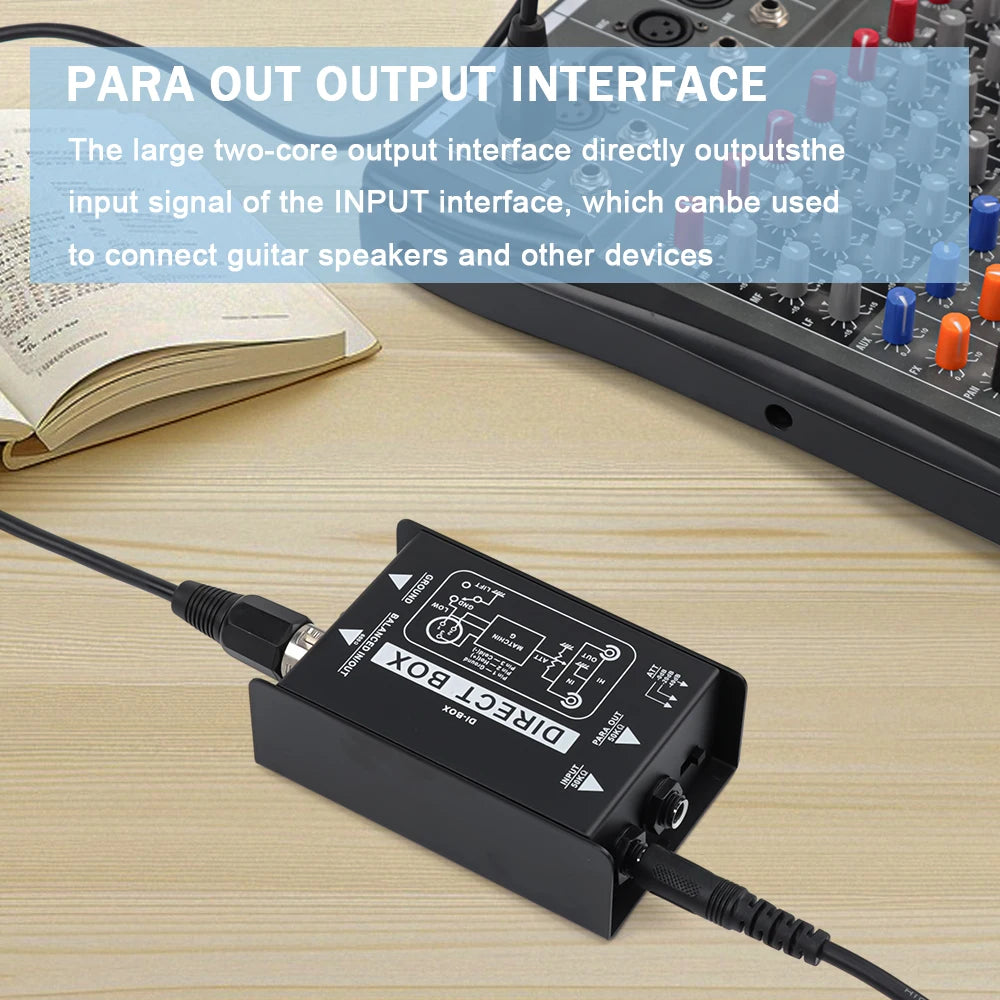

• Parallel (thru) output to feed your amp
• Durable metal housing with rubber corner pads

Specifications

• Brand: KDES
• Type: Passive DI box

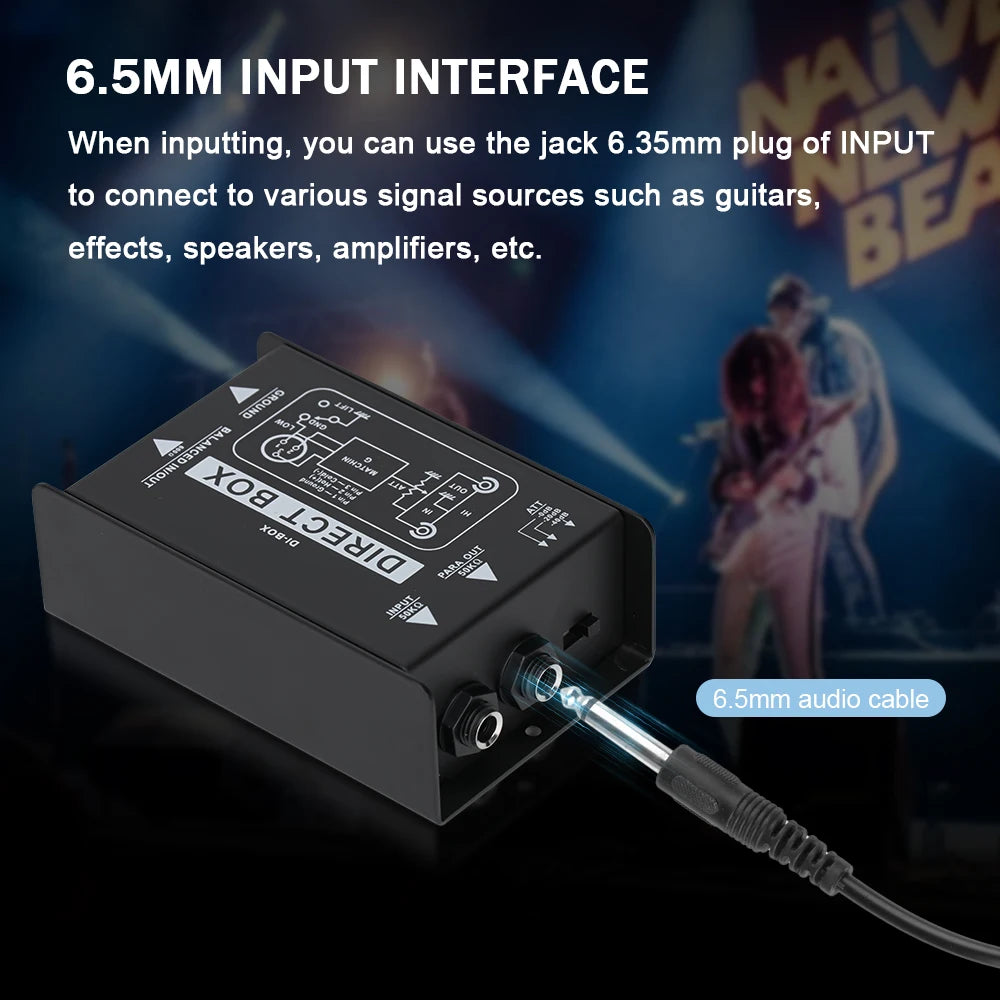

• Input: 6.35mm (1/4") high-impedance
• Outputs: Balanced XLR, parallel 1/4" thru
• Attenuation: 0dB / -20dB / -40dB
• Switches: Ground lift
• Housing: Metal, rubber corner pads

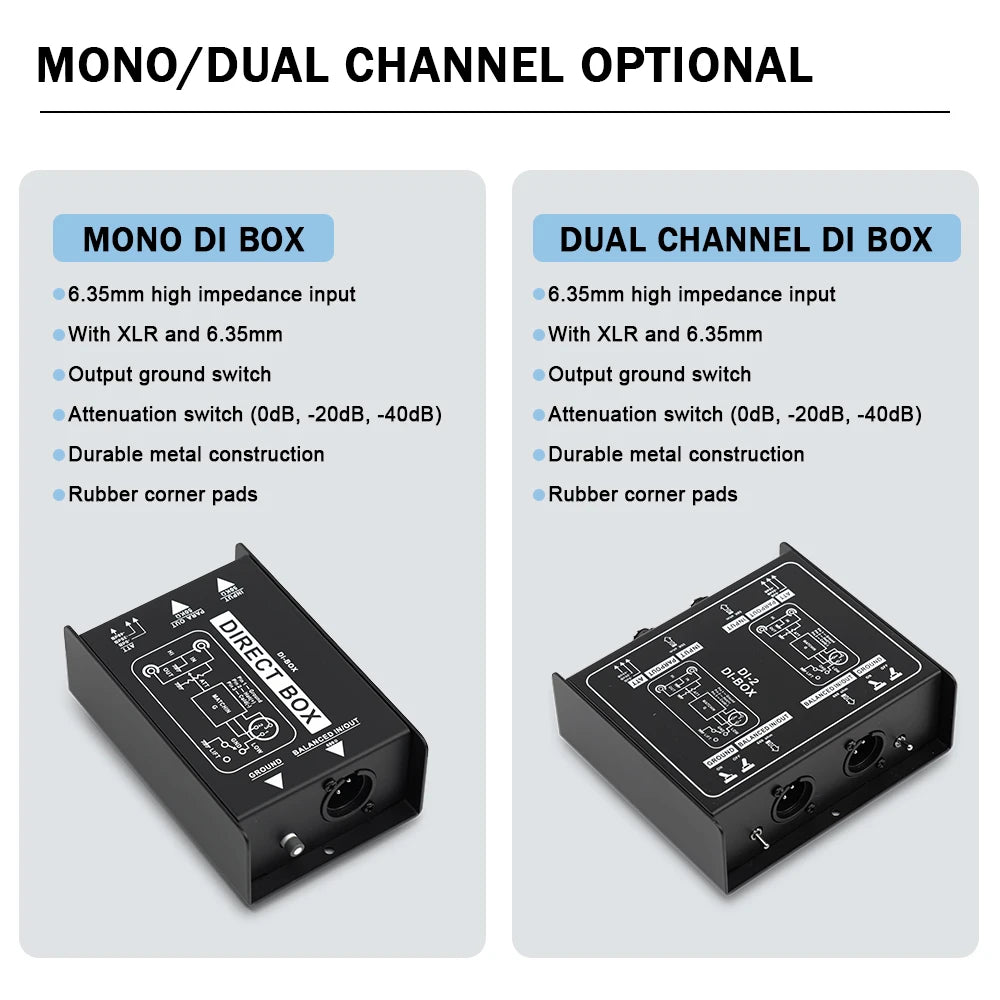

• Options: Mono or dual-channel

Specifications taken from the manufacturer's product documentation and device markings. Passive DI — no power needed.
