4-Channel XLR to RJ45 Audio Extender — Compact Cat5e/Cat6 Transmitter

Send four channels of audio (or DMX lighting control) down a single ordinary network cable instead of running four separate XLR leads. A breakout box at each end converts four XLR connectors to one RJ45 (Ethercon-style) port — ideal for smaller stages, houses of worship and studios where you need a few channels across the room without a heavy multicore.

Highlights

• 4 channels over one Cat5e/Cat6 cable

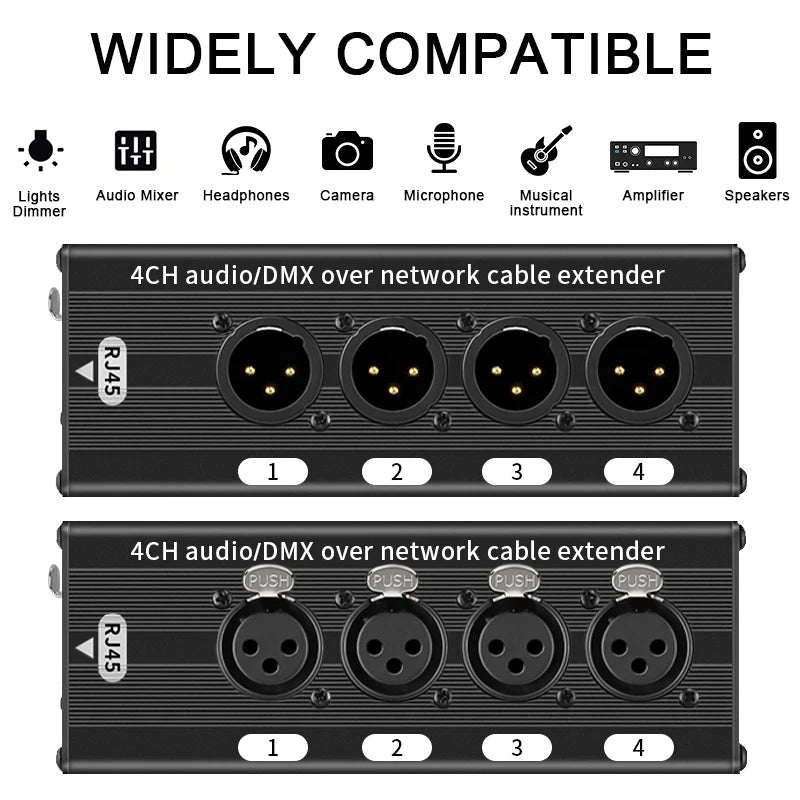

• Carries balanced audio or DMX512 lighting control

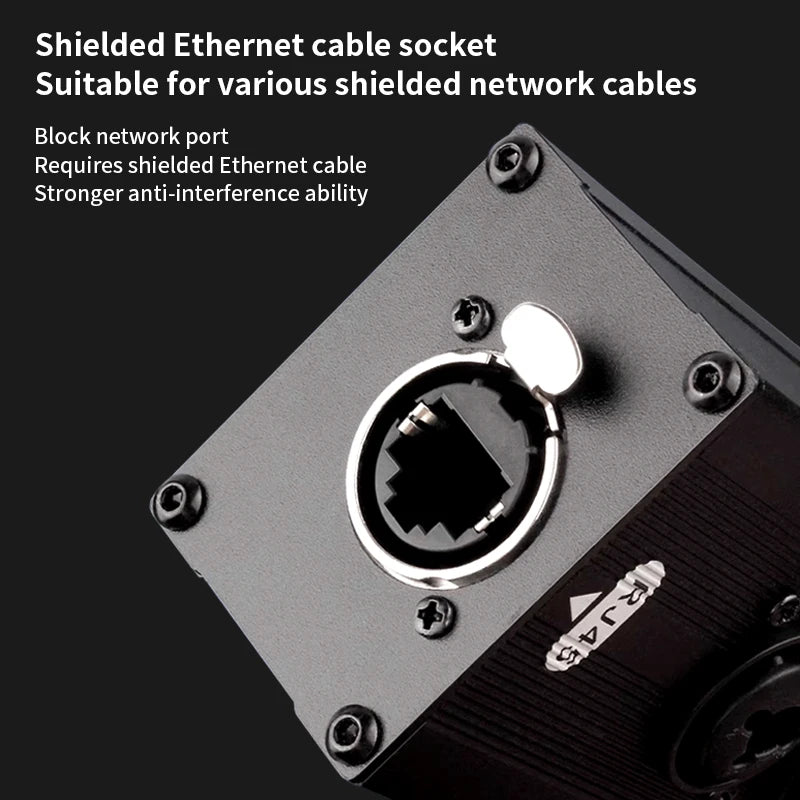

• Compact metal breakout box with locking RJ45 (Ethercon-style) socket
• Passive — no power needed

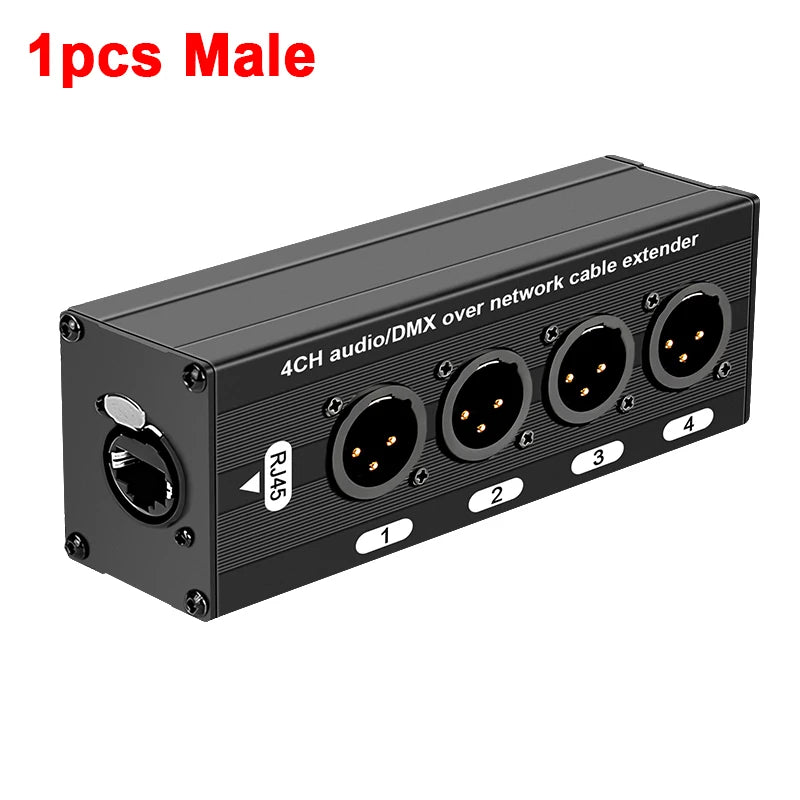

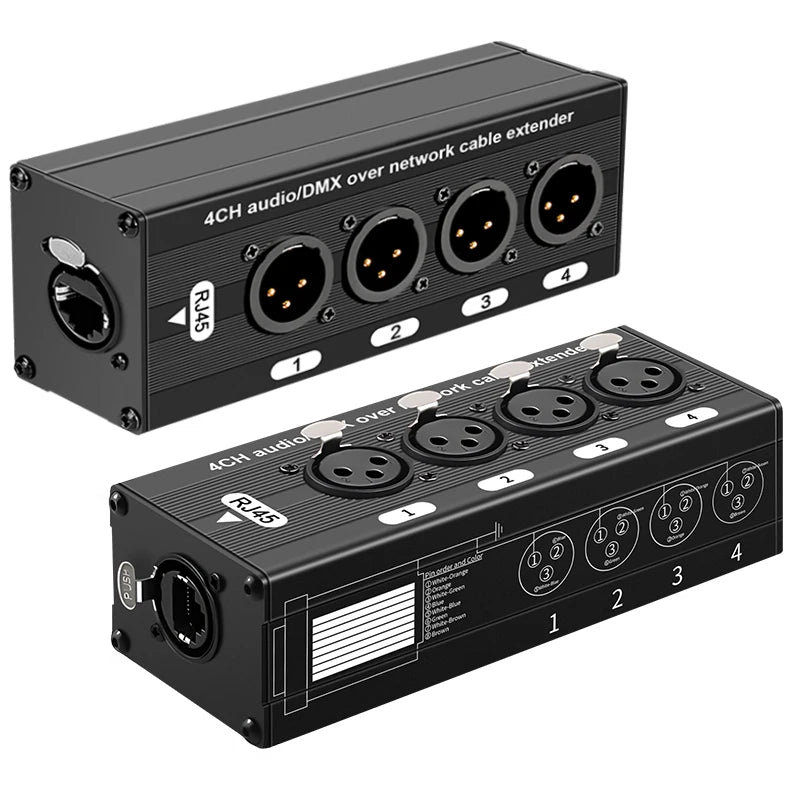

• Choose XLR male or female ends (needs a box at each end)

Specifications

• Type: 4-channel audio / DMX over-network-cable extender (breakout box)
• Channels: 4

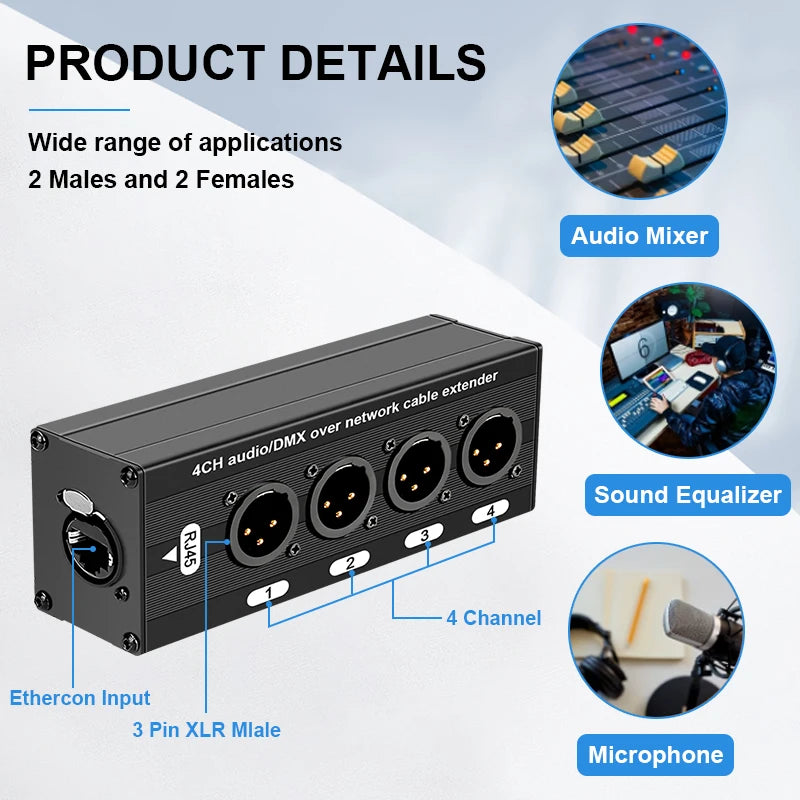

• Box connectors: 4 × 3-pin XLR + 1 × RJ45 (Ethercon-style)
• XLR ends: male or female (select variant above)
• Signal: Balanced analogue audio or DMX512
• Power: Passive

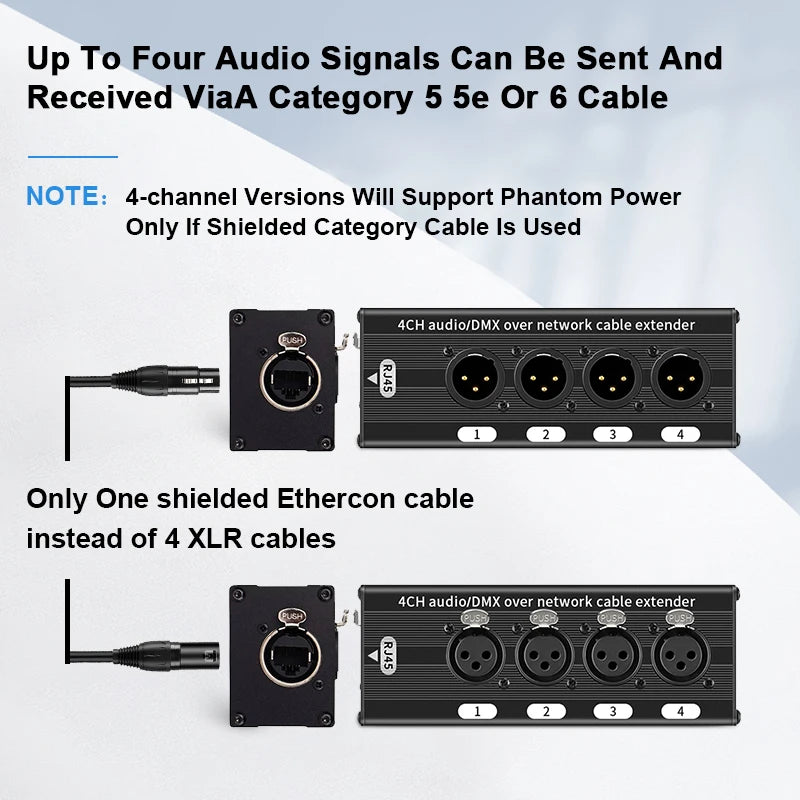

• Transport cable: Cat5e/Cat6 (not included) — use shielded cable to pass 48V phantom

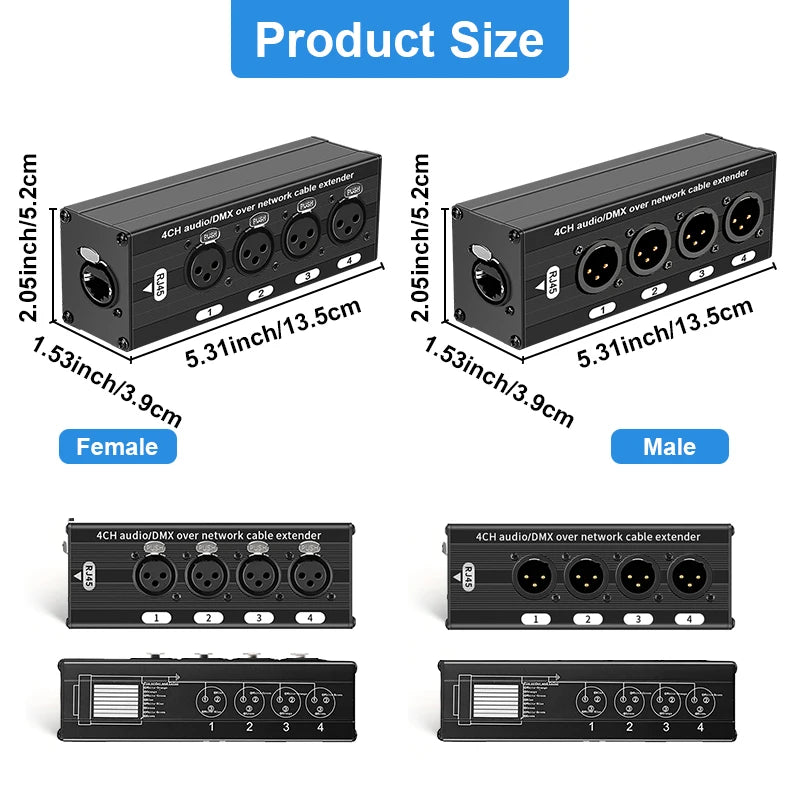

• Dimensions: 13.5 × 3.9 × 5.2 cm

Specifications taken from the manufacturer's product documentation and device markings. A complete run needs one box at each end; phantom power only passes over shielded Cat cable.
